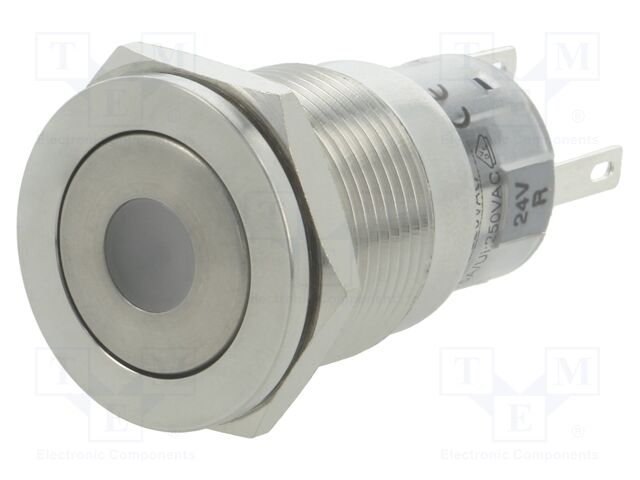

LAS1-AGQPF-11D/R/24V/S ONPOW
Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP67
Operating temperature: -20...55°C
Ring shape: flat
Button shape: flat
Leads: for soldering
IP rating: IP67
Illumination: LED; point
Body material: stainless steel
Type of switch: vandal resistant
Contacts configuration: SPDT
Switching method: ON-(ON)
Body colour: silver
Contact material: silver alloy
Mounting hole diameter: Ø19mm
Max. contact resistance:: 50mΩ
AC contacts rating @R: 0.5A / 220V AC
Operating Force: 4N
Stable positions number: 1
DC contacts rating @R: 1A / 24V DC
Number of positions: 2
Illumination voltage: 24V
Test voltage: 1.5kV
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Backlight colour: red
