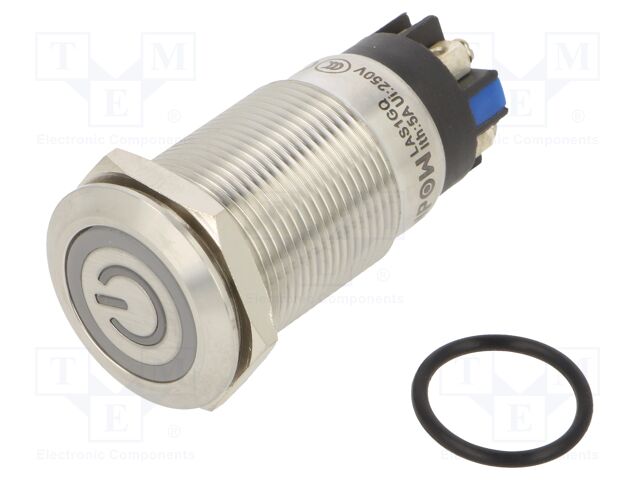

LAS1GQF-11ZET/L/B/12V/S ONPOW
Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Leads: screw terminals
Operating temperature: -25...55°C
Manufacturer series: LAS1GQ
Body material: stainless steel
Contact material: silver alloy
Type of switch: vandal resistant
Contacts configuration: SPDT
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
Switching method: ON-ON
Stable positions number: 2
Operating Force: 4N
Illumination: LED; ring
Illumination voltage: 12V
Button marking: POWER
Actuator colour: silver
Body colour: silver
Backlight colour: blue
Button shape: flat
Number of positions: 2
Ring shape: rounded
Mechanical durability: 1000000 cycles
Test voltage: 2kV
Max. contact resistance:: 50mΩ
Min. insulation resistance: 1GΩ
IP rating: IP65
Mounting hole diameter: Ø19mm
Electrical life: 50000 cycles
Anzahl je Verpackung: 1 Stücke
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Leads: screw terminals
Operating temperature: -25...55°C
Manufacturer series: LAS1GQ
Body material: stainless steel
Contact material: silver alloy
Type of switch: vandal resistant
Contacts configuration: SPDT
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
Switching method: ON-ON
Stable positions number: 2
Operating Force: 4N
Illumination: LED; ring
Illumination voltage: 12V
Button marking: POWER
Actuator colour: silver
Body colour: silver
Backlight colour: blue
Button shape: flat
Number of positions: 2
Ring shape: rounded
Mechanical durability: 1000000 cycles
Test voltage: 2kV
Max. contact resistance:: 50mΩ
Min. insulation resistance: 1GΩ
IP rating: IP65
Mounting hole diameter: Ø19mm
Electrical life: 50000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 9 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
4+ | 18.75 EUR |
6+ | 12.2 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details LAS1GQF-11ZET/L/B/12V/S ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65, Leads: screw terminals, Operating temperature: -25...55°C, Manufacturer series: LAS1GQ, Body material: stainless steel, Contact material: silver alloy, Type of switch: vandal resistant, Contacts configuration: SPDT, AC contacts rating @R: 3A / 220V AC, DC contacts rating @R: 5A / 24V DC, Switching method: ON-ON, Stable positions number: 2, Operating Force: 4N, Illumination: LED; ring, Illumination voltage: 12V, Button marking: POWER, Actuator colour: silver, Body colour: silver, Backlight colour: blue, Button shape: flat, Number of positions: 2, Ring shape: rounded, Mechanical durability: 1000000 cycles, Test voltage: 2kV, Max. contact resistance:: 50mΩ, Min. insulation resistance: 1GΩ, IP rating: IP65, Mounting hole diameter: Ø19mm, Electrical life: 50000 cycles, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote LAS1GQF-11ZET/L/B/12V/S nach Preis ab 12.2 EUR bis 18.75 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
LAS1GQF-11ZET/L/B/12V/S | Hersteller : ONPOW |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65 Leads: screw terminals Operating temperature: -25...55°C Manufacturer series: LAS1GQ Body material: stainless steel Contact material: silver alloy Type of switch: vandal resistant Contacts configuration: SPDT AC contacts rating @R: 3A / 220V AC DC contacts rating @R: 5A / 24V DC Switching method: ON-ON Stable positions number: 2 Operating Force: 4N Illumination: LED; ring Illumination voltage: 12V Button marking: POWER Actuator colour: silver Body colour: silver Backlight colour: blue Button shape: flat Number of positions: 2 Ring shape: rounded Mechanical durability: 1000000 cycles Test voltage: 2kV Max. contact resistance:: 50mΩ Min. insulation resistance: 1GΩ IP rating: IP65 Mounting hole diameter: Ø19mm Electrical life: 50000 cycles |
auf Bestellung 9 Stücke: Lieferzeit 14-21 Tag (e) |
|
