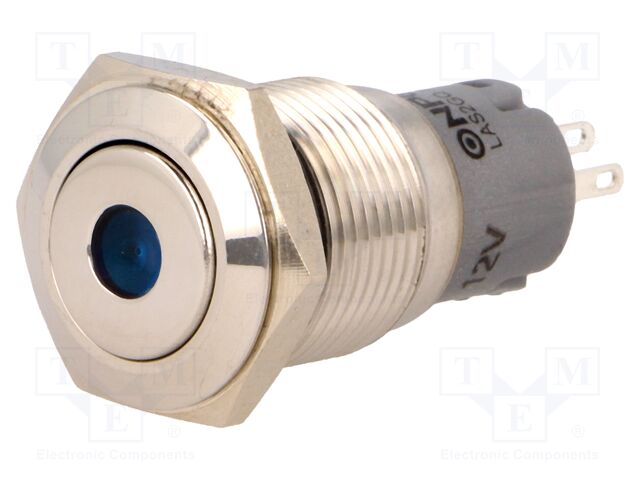

LAS2-GQF-11D/B12V/S-FP

LAS2-GQF-11D/B12V/S-FP ONPOW

pVersion=0046&contRep=ZT&docId=005056AB281E1EDEB78D5A978F94A0D6&compId=LAS2GQF-D.pdf?ci_sign=b3adfccb7f6ec67624b1b1d6e069f1a580d8696c Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP67
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPDT
AC contacts rating @R: 0.5A / 220V AC
DC contacts rating @R: 1A / 24V DC
Switching method: ON-(ON)
IP rating: IP67
Illumination: LED; point
Leads: for soldering
Button shape: flat
Mounting hole diameter: Ø16mm
Body colour: silver
Operating temperature: -20...55°C
Backlight colour: blue
Ring shape: rounded
Contact material: silver alloy
Max. contact resistance:: 50mΩ
Body material: stainless steel
Operating Force: 4N
Illumination voltage: 12V
Test voltage: 1.5kV
Electrical life: 50000 cycles
Mechanical durability: 200000 cycles
auf Bestellung 11 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
11+6.51 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details LAS2-GQF-11D/B12V/S-FP ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP67, Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 1, Contacts configuration: SPDT, AC contacts rating @R: 0.5A / 220V AC, DC contacts rating @R: 1A / 24V DC, Switching method: ON-(ON), IP rating: IP67, Illumination: LED; point, Leads: for soldering, Button shape: flat, Mounting hole diameter: Ø16mm, Body colour: silver, Operating temperature: -20...55°C, Backlight colour: blue, Ring shape: rounded, Contact material: silver alloy, Max. contact resistance:: 50mΩ, Body material: stainless steel, Operating Force: 4N, Illumination voltage: 12V, Test voltage: 1.5kV, Electrical life: 50000 cycles, Mechanical durability: 200000 cycles.
