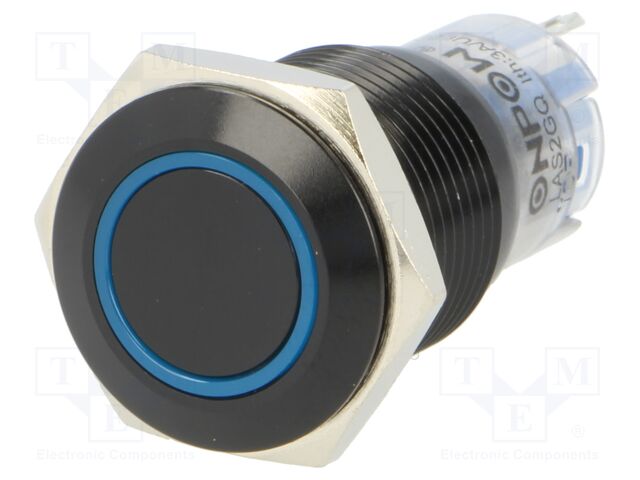

LAS2-GQF-11E/B/24V/A/FP ONPOW
Hersteller: ONPOWCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP67
Operating temperature: -20...55°C
Contact material: silver alloy
Type of switch: vandal resistant
Contacts configuration: SPDT
AC contacts rating @R: 0.5A / 220V AC
DC contacts rating @R: 1A / 24V DC
Switching method: ON-(ON)
Stable positions number: 1
Operating Force: 4N
Illumination: LED; ring
Illumination voltage: 24V
Body colour: black
Backlight colour: blue
Button shape: flat
Number of positions: 2
Ring shape: rounded
Mechanical durability: 200000 cycles
Test voltage: 1.5kV
Max. contact resistance:: 50mΩ
IP rating: IP67
Mounting hole diameter: Ø16mm
Leads: for soldering
Electrical life: 50000 cycles
Body material: aluminium
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details LAS2-GQF-11E/B/24V/A/FP ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP67, Operating temperature: -20...55°C, Contact material: silver alloy, Type of switch: vandal resistant, Contacts configuration: SPDT, AC contacts rating @R: 0.5A / 220V AC, DC contacts rating @R: 1A / 24V DC, Switching method: ON-(ON), Stable positions number: 1, Operating Force: 4N, Illumination: LED; ring, Illumination voltage: 24V, Body colour: black, Backlight colour: blue, Button shape: flat, Number of positions: 2, Ring shape: rounded, Mechanical durability: 200000 cycles, Test voltage: 1.5kV, Max. contact resistance:: 50mΩ, IP rating: IP67, Mounting hole diameter: Ø16mm, Leads: for soldering, Electrical life: 50000 cycles, Body material: aluminium.
