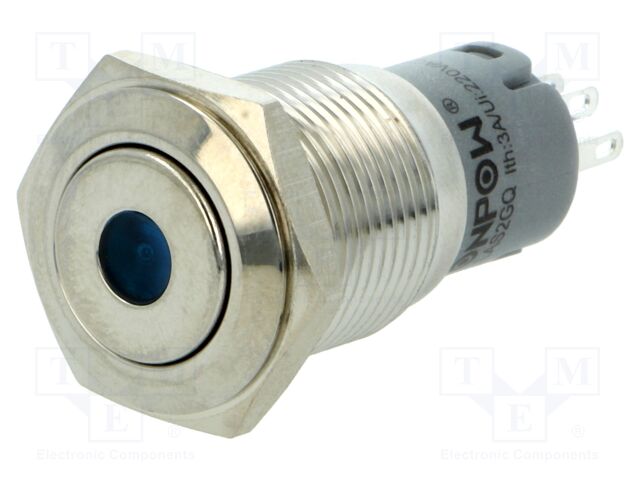

LAS2-GQF-11ZD/B24V/S-FP ONPOW
Hersteller: ONPOWCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP67
Operating temperature: -20...55°C
Contact material: silver alloy
Type of switch: vandal resistant
Contacts configuration: SPDT
AC contacts rating @R: 0.5A / 220V AC
DC contacts rating @R: 1A / 24V DC
Switching method: ON-ON
Stable positions number: 2
Operating Force: 4N
Illumination: LED; point
Illumination voltage: 24V
Body colour: silver
Backlight colour: blue
Button shape: flat
Number of positions: 2
Ring shape: rounded
Mechanical durability: 1000000 cycles
Test voltage: 1.5kV
Max. contact resistance:: 50mΩ
IP rating: IP67
Mounting hole diameter: Ø16mm
Leads: for soldering
Electrical life: 200000 cycles
Body material: stainless steel
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details LAS2-GQF-11ZD/B24V/S-FP ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP67, Operating temperature: -20...55°C, Contact material: silver alloy, Type of switch: vandal resistant, Contacts configuration: SPDT, AC contacts rating @R: 0.5A / 220V AC, DC contacts rating @R: 1A / 24V DC, Switching method: ON-ON, Stable positions number: 2, Operating Force: 4N, Illumination: LED; point, Illumination voltage: 24V, Body colour: silver, Backlight colour: blue, Button shape: flat, Number of positions: 2, Ring shape: rounded, Mechanical durability: 1000000 cycles, Test voltage: 1.5kV, Max. contact resistance:: 50mΩ, IP rating: IP67, Mounting hole diameter: Ø16mm, Leads: for soldering, Electrical life: 200000 cycles, Body material: stainless steel.
