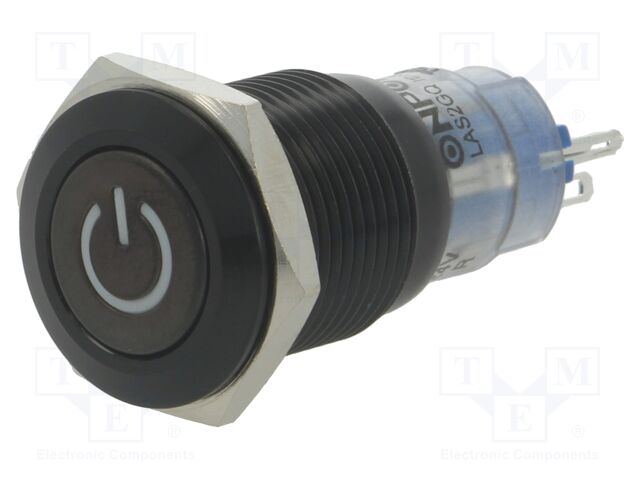

LAS2GQF-11DT/R/24V/A ONPOW
Hersteller: ONPOWCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP40
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPDT
AC contacts rating @R: 0.5A / 220V AC
DC contacts rating @R: 1A / 24V DC
IP rating: IP40
Switching method: ON-(ON)
Illumination: LED; point
Backlight colour: red
Illumination voltage: 24V
Test voltage: 1.5kV
Leads: for soldering
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Mechanical durability: 200000 cycles
Button shape: flat
Mounting hole diameter: Ø16mm
Body colour: black
Body material: aluminium
Ring shape: rounded
Contact material: silver alloy
Operating temperature: -20...55°C
Related items: M12-16F; M20-11D
Button marking: POWER
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 35.75 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details LAS2GQF-11DT/R/24V/A ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP40, Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 1, Contacts configuration: SPDT, AC contacts rating @R: 0.5A / 220V AC, DC contacts rating @R: 1A / 24V DC, IP rating: IP40, Switching method: ON-(ON), Illumination: LED; point, Backlight colour: red, Illumination voltage: 24V, Test voltage: 1.5kV, Leads: for soldering, Electrical life: 50000 cycles, Max. contact resistance:: 50mΩ, Operating Force: 4N, Mechanical durability: 200000 cycles, Button shape: flat, Mounting hole diameter: Ø16mm, Body colour: black, Body material: aluminium, Ring shape: rounded, Contact material: silver alloy, Operating temperature: -20...55°C, Related items: M12-16F; M20-11D, Button marking: POWER.
