Produkte > ONPOW > LAS2GQF-11ZDT/Y/12V/A

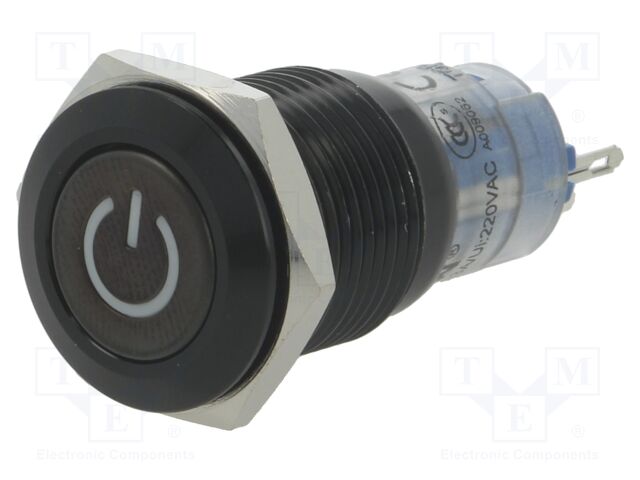

LAS2GQF-11ZDT/Y/12V/A

LAS2GQF-11ZDT/Y/12V/A ONPOW

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED92C7A0ACE60C7&compId=LAS2GQF-DT.pdf?ci_sign=3fb361be5e18f752363b89fb3d42c69f92805b9b Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP40
Related items: M12-16F; M20-11D
Body material: aluminium
Body colour: black
Button marking: POWER
Backlight colour: yellow
Button shape: flat
Leads: for soldering
IP rating: IP40
Type of switch: vandal resistant
Illumination: LED; point
Contacts configuration: SPDT
Switching method: ON-ON
Ring shape: rounded
Contact material: silver alloy
Operating temperature: -20...55°C
Mounting hole diameter: Ø16mm
Max. contact resistance:: 50mΩ
AC contacts rating @R: 0.5A / 220V AC
DC contacts rating @R: 1A / 24V DC
Stable positions number: 2
Number of positions: 2
Operating Force: 4N
Illumination voltage: 12V
Test voltage: 1.5kV
Electrical life: 50000 cycles
Mechanical durability: 200000 cycles
auf Bestellung 45 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
7+10.78 EUR
10+7.39 EUR
Mindestbestellmenge: 7
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details LAS2GQF-11ZDT/Y/12V/A ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP40, Related items: M12-16F; M20-11D, Body material: aluminium, Body colour: black, Button marking: POWER, Backlight colour: yellow, Button shape: flat, Leads: for soldering, IP rating: IP40, Type of switch: vandal resistant, Illumination: LED; point, Contacts configuration: SPDT, Switching method: ON-ON, Ring shape: rounded, Contact material: silver alloy, Operating temperature: -20...55°C, Mounting hole diameter: Ø16mm, Max. contact resistance:: 50mΩ, AC contacts rating @R: 0.5A / 220V AC, DC contacts rating @R: 1A / 24V DC, Stable positions number: 2, Number of positions: 2, Operating Force: 4N, Illumination voltage: 12V, Test voltage: 1.5kV, Electrical life: 50000 cycles, Mechanical durability: 200000 cycles.
