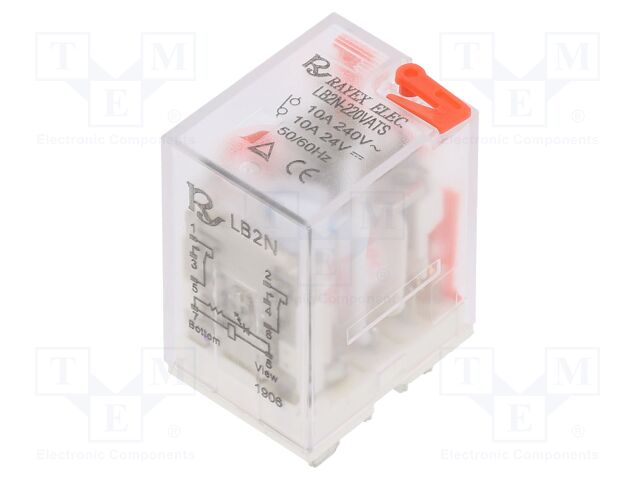

LB2N-220ATS Recoy/RAYEX ELECTRONICS
Hersteller: Recoy/RAYEX ELECTRONICS
Category: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 10A
Type of relay: electromagnetic
Relay variant: industrial
Indication: LED
Mounting: socket
Design: test button
Operating temperature: -40...60°C
Leads dimensions: 2.5x0.5mm
Release time: 15ms
Operate time: 15ms
Body dimensions: 28x21.5x35mm
Contact resistance: 100mΩ
Coil power consumption: 1.2VA
Contact current max.: 10A
DC contacts rating @R: 10A / 24V DC
AC contacts rating @R: 10A / 240V AC
Switched voltage: max. 30V DC; max. 240V AC
Rated coil voltage: 230V AC
Coil resistance: 16kΩ
Electrical life: 100000 cycles
Mechanical durability: 10000000 cycles
Contacts configuration: DPDT
Leads: connectors
Manufacturer series: LB2
Anzahl je Verpackung: 1 Stücke
Category: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 230VAC; Icontacts max: 10A
Type of relay: electromagnetic
Relay variant: industrial
Indication: LED
Mounting: socket
Design: test button
Operating temperature: -40...60°C
Leads dimensions: 2.5x0.5mm
Release time: 15ms
Operate time: 15ms
Body dimensions: 28x21.5x35mm
Contact resistance: 100mΩ
Coil power consumption: 1.2VA
Contact current max.: 10A
DC contacts rating @R: 10A / 24V DC
AC contacts rating @R: 10A / 240V AC
Switched voltage: max. 30V DC; max. 240V AC
Rated coil voltage: 230V AC
Coil resistance: 16kΩ
Electrical life: 100000 cycles
Mechanical durability: 10000000 cycles
Contacts configuration: DPDT
Leads: connectors
Manufacturer series: LB2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 157 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 18+ | 4.18 EUR |
| 21+ | 3.45 EUR |
| 100+ | 3.02 EUR |
| 1000+ | 2.92 EUR |
