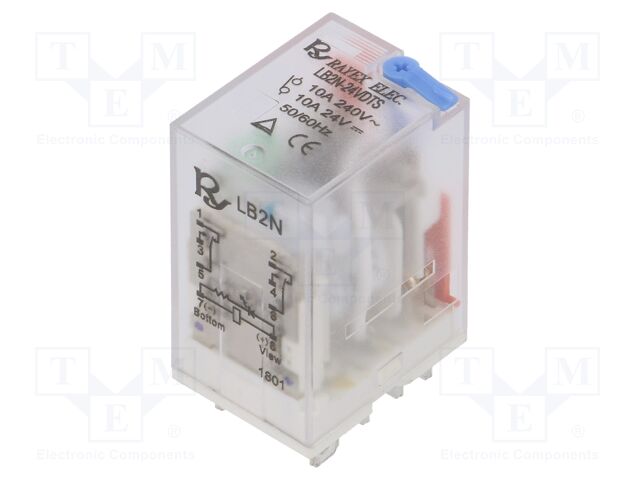

LB2N-24DTS Recoy/RAYEX ELECTRONICS
Hersteller: Recoy/RAYEX ELECTRONICS
Category: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; Ucoil: 24VDC; DPDT; Icontacts max: 10A
Manufacturer series: LB2H
Mounting: socket
Operating temperature: -40...60°C
Indication: LED
Contacts configuration: DPDT
Leads: connectors
Operate time: 15ms
Switched voltage: max. 30V DC; max. 240V AC
Leads dimensions: 2.5x0.5mm
Electrical life: 100000 cycles
Release time: 15ms
Coil voltage: 24V DC
Contact resistance: 100mΩ
Type of relay: electromagnetic
Coil resistance: 650Ω
Contact current max.: 10A
Relay variant: industrial
Mechanical durability: 10000000 cycles
DC contacts rating @R: 10A / 24V DC
Design: test button
Coil power consumption: 1.1W
AC contacts rating @R: 10A / 240V AC
Body dimensions: 28x21.5x35mm
| Anzahl | Privatkunde |
|---|---|
| 20+ | 4.39 EUR |
| 24+ | 3.64 EUR |
| 30+ | 3.08 EUR |
| 100+ | 3.03 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details LB2N-24DTS Recoy/RAYEX ELECTRONICS
Category: Industrial Electromagnetic Relays, Description: Relay: electromagnetic; Ucoil: 24VDC; DPDT; Icontacts max: 10A, Manufacturer series: LB2H, Mounting: socket, Operating temperature: -40...60°C, Indication: LED, Contacts configuration: DPDT, Leads: connectors, Operate time: 15ms, Switched voltage: max. 30V DC; max. 240V AC, Leads dimensions: 2.5x0.5mm, Electrical life: 100000 cycles, Release time: 15ms, Coil voltage: 24V DC, Contact resistance: 100mΩ, Type of relay: electromagnetic, Coil resistance: 650Ω, Contact current max.: 10A, Relay variant: industrial, Mechanical durability: 10000000 cycles, DC contacts rating @R: 10A / 24V DC, Design: test button, Coil power consumption: 1.1W, AC contacts rating @R: 10A / 240V AC, Body dimensions: 28x21.5x35mm.
