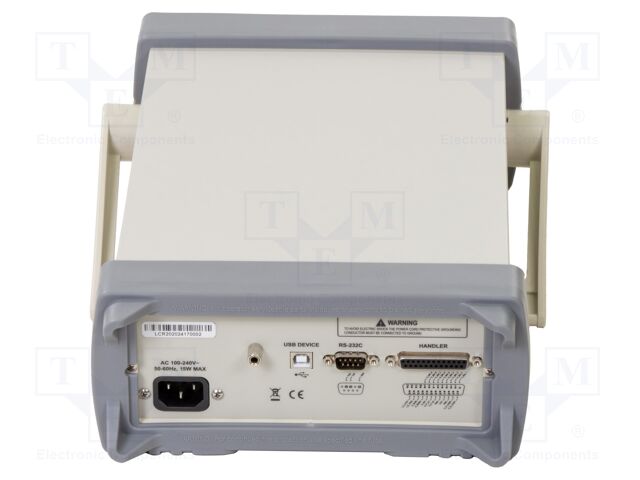

LCR2020
LCR2020
LCR2020
LCR2020LCR2020LCR2020

LCR2020 OWON

LCR_user_manual.pdf
Hersteller: OWON
Category: LCR Meter
Description: LCR meter; LCD 3,5"; R range: 0.0001÷99.9999MΩ; 0.05%; 10Hz÷20kHz
Standard equipment: mains cable; measuring probe T10; RS232 cable; short circuit board; test leads
Kind of display used: LCD 3,5"
Dimensions: 264x107x349.5mm
Resistance measuring range: 0.0001...99.9999MΩ
Inductance measuring range: 100pH...9999.99H
Interface: HANDLER; RS232; USB device; USB Host
Measurement frequency: 10Hz...20kHz
Type of meter: LCR meter
Measurement: capacitance; conductance; impedance; inductance; phase angle θ; quality factor Q; reactance; resistance
Capacitance measuring range: 0.0001pF...9999.99mF
Supply voltage: 100...240V AC
Output impedance: 30Ω; 50Ω; 100Ω
Accuracy: 0.05%
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details LCR2020 OWON

Category: LCR Meter, Description: LCR meter; LCD 3,5"; R range: 0.0001÷99.9999MΩ; 0.05%; 10Hz÷20kHz, Standard equipment: mains cable; measuring probe T10; RS232 cable; short circuit board; test leads, Kind of display used: LCD 3,5", Dimensions: 264x107x349.5mm, Resistance measuring range: 0.0001...99.9999MΩ, Inductance measuring range: 100pH...9999.99H, Interface: HANDLER; RS232; USB device; USB Host, Measurement frequency: 10Hz...20kHz, Type of meter: LCR meter, Measurement: capacitance; conductance; impedance; inductance; phase angle θ; quality factor Q; reactance; resistance, Capacitance measuring range: 0.0001pF...9999.99mF, Supply voltage: 100...240V AC, Output impedance: 30Ω; 50Ω; 100Ω, Accuracy: 0.05%.
