Produkte > F&T > LFB10000/63

LFB10000/63 F&T

pVersion=0046&contRep=ZT&docId=005056AB752F1EE5A7E40D0B8695011C&compId=LF2012.pdf?ci_sign=b3981de2574e0a4b1c637506684a490b336dbf53

Hersteller: F&T
Category: Screw terminal and others el. capacitors

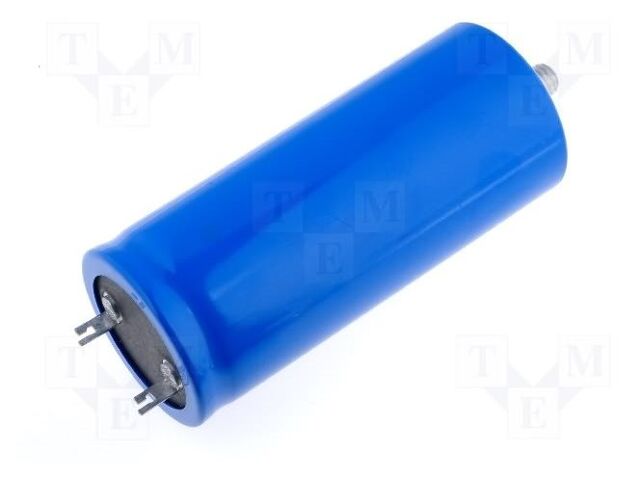

Description: Capacitor: electrolytic; 10000uF; 63VDC; Ø35x66mm; Pitch: 10mm
Type of capacitor: electrolytic
Capacitance: 10mF
Operating voltage: 63V DC
Terminal pitch: 10mm
Tolerance: -10...30%
Operating temperature: -40...105°C
Body dimensions: Ø35x66mm
Height: 66mm
Service life: 2000h
Mounting: M8x12 screw
Leads: soldering lugs
Lead length: 10mm
Diameter: 35mm
Impedance: 30mΩ

Produkt ist nicht verfügbar

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details LFB10000/63 F&T

Category: Screw terminal and others el. capacitors, Description: Capacitor: electrolytic; 10000uF; 63VDC; Ø35x66mm; Pitch: 10mm, Type of capacitor: electrolytic, Capacitance: 10mF, Operating voltage: 63V DC, Terminal pitch: 10mm, Tolerance: -10...30%, Operating temperature: -40...105°C, Body dimensions: Ø35x66mm, Height: 66mm, Service life: 2000h, Mounting: M8x12 screw, Leads: soldering lugs, Lead length: 10mm, Diameter: 35mm, Impedance: 30mΩ.
