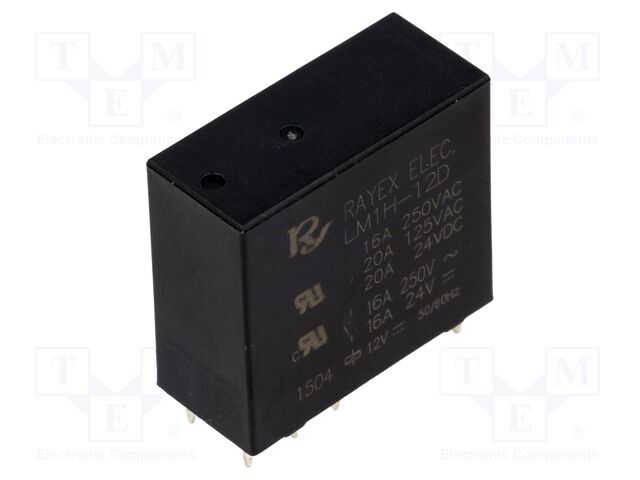

LM1H-12D Recoy/RAYEX ELECTRONICS
Hersteller: Recoy/RAYEX ELECTRONICS
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A
Type of relay: electromagnetic
Switched voltage: max. 30V DC; max. 250V AC
Manufacturer series: LM1H
Relay variant: miniature
Body dimensions: 29x20.5x12.5mm
Operating temperature: -40...80°C
Release time: 10ms
Operate time: 15ms
Terminal pitch: 5mm
Coil current: 44.4mA
Coil power consumption: 530mW
Contact resistance: 100mΩ
Contact current max.: 16A
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 30V DC
Rated coil voltage: 12V DC
Coil resistance: 270Ω
Contacts configuration: SPDT
Contact material: AgCdO
Mounting: PCB
| Anzahl | Preis |
|---|---|
| 28+ | 2.56 EUR |
| 33+ | 2.17 EUR |
| 38+ | 1.89 EUR |
| 100+ | 1.62 EUR |
| 500+ | 1.43 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details LM1H-12D Recoy/RAYEX ELECTRONICS
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A, Type of relay: electromagnetic, Switched voltage: max. 30V DC; max. 250V AC, Manufacturer series: LM1H, Relay variant: miniature, Body dimensions: 29x20.5x12.5mm, Operating temperature: -40...80°C, Release time: 10ms, Operate time: 15ms, Terminal pitch: 5mm, Coil current: 44.4mA, Coil power consumption: 530mW, Contact resistance: 100mΩ, Contact current max.: 16A, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 30V DC, Rated coil voltage: 12V DC, Coil resistance: 270Ω, Contacts configuration: SPDT, Contact material: AgCdO, Mounting: PCB.
