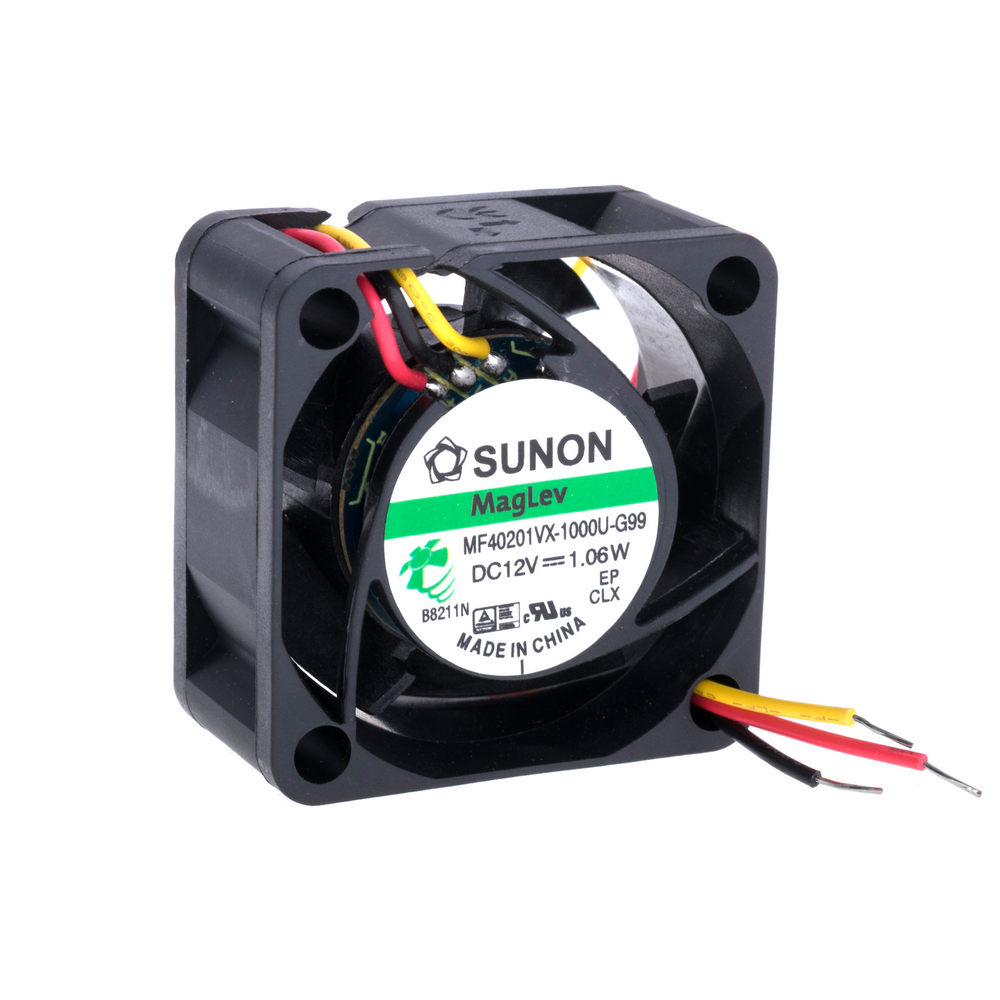

MF40201V1-1000U-A99 Sunon
| Anzahl | Privatkunde |
|---|---|
| 1+ | 12.92 EUR |
| 10+ | 11.57 EUR |
| 25+ | 10.77 EUR |
| 50+ | 10.52 EUR |
| 100+ | 10.45 EUR |
| 200+ | 10.06 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF40201V1-1000U-A99 Sunon
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x20mm; 15.04m3/h; 25.5dBA; Vapo; 7000rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V DC, Fan dimensions: 40x40x20mm, Power consumption: 0.7W, Current rating: 58mA, Fan efficiency: 15.04m3/h, Noise level: 25.5dBA, Kind of Bearing: Vapo, Rotational rate/speed: 7000rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x2, Lead length: 0.305m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 5.59mm H2O, Wire size: 26AWG.
Weitere Produktangebote MF40201V1-1000U-A99 nach Preis ab 3.64 EUR bis 16.56 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF40201V1-1000U-A99 | SUNON |
 Category: DC12V FansDescription: Fan: DC; axial; 12VDC; 40x40x20mm; 15.04m3/h; 25.5dBA; Vapo; 7000rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V DC Fan dimensions: 40x40x20mm Power consumption: 0.7W Current rating: 58mA Fan efficiency: 15.04m3/h Noise level: 25.5dBA Kind of Bearing: Vapo Rotational rate/speed: 7000rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: leads x2 Lead length: 0.305m Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 5.59mm H2O Wire size: 26AWG |
auf Bestellung 1337 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
 |
MF40201V1-1000U-A99 | Sunon Fans |
Description: FAN AXIAL 40X20MM 12VDC WIRE Features: Auto Restart Packaging: Bulk Voltage - Rated: 12VDC Size / Dimension: Square - 40mm L x 40mm H Bearing Type: Vapo-Bearing™ RPM: 7000 RPM Air Flow: 8.9 CFM (0.249m³/min) Width: 20.00mm Weight: 0.064 lb (29.03 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: cURus, TUV Fan Type: Tubeaxial Noise: 25.5dB(A) Static Pressure: 0.220 in H2O (54.8 Pa) Part Status: Active Power (Watts): 700 mW |
auf Bestellung 1375 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
| MF40201V1-1000U-A99 | Sunon |
Mag Lev Motor Fan |
auf Bestellung 180 Stücke: Lieferzeit 14-21 Tag (e) |
|
| MF40201V1-1000U-A99 |
|
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x20mm; 15.04m3/h; 25.5dBA; Vapo; 7000rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Fan dimensions: 40x40x20mm
Power consumption: 0.7W
Current rating: 58mA
Fan efficiency: 15.04m3/h
Noise level: 25.5dBA
Kind of Bearing: Vapo
Rotational rate/speed: 7000rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.305m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 5.59mm H2O
Wire size: 26AWG
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x20mm; 15.04m3/h; 25.5dBA; Vapo; 7000rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Fan dimensions: 40x40x20mm
Power consumption: 0.7W
Current rating: 58mA
Fan efficiency: 15.04m3/h
Noise level: 25.5dBA
Kind of Bearing: Vapo
Rotational rate/speed: 7000rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Lead length: 0.305m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 5.59mm H2O
Wire size: 26AWG
auf Bestellung 1337 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 16+ | 5.41 EUR |
| 50+ | 4.22 EUR |
| 100+ | 3.8 EUR |
| 200+ | 3.64 EUR |
| MF40201V1-1000U-A99 |
|
Hersteller: Sunon Fans
Description: FAN AXIAL 40X20MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Vapo-Bearing™
RPM: 7000 RPM
Air Flow: 8.9 CFM (0.249m³/min)
Width: 20.00mm
Weight: 0.064 lb (29.03 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 25.5dB(A)
Static Pressure: 0.220 in H2O (54.8 Pa)
Part Status: Active
Power (Watts): 700 mW
Description: FAN AXIAL 40X20MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Vapo-Bearing™
RPM: 7000 RPM
Air Flow: 8.9 CFM (0.249m³/min)
Width: 20.00mm
Weight: 0.064 lb (29.03 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: cURus, TUV
Fan Type: Tubeaxial
Noise: 25.5dB(A)
Static Pressure: 0.220 in H2O (54.8 Pa)
Part Status: Active
Power (Watts): 700 mW
auf Bestellung 1375 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 16.56 EUR |
| 10+ | 13.45 EUR |
| 25+ | 12.27 EUR |
| 50+ | 11.42 EUR |
| 200+ | 10.23 EUR |
| MF40201V1-1000U-A99 |
|
Hersteller: Sunon
Mag Lev Motor Fan
Mag Lev Motor Fan
auf Bestellung 180 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 30+ | 12.72 EUR |
| 60+ | 12.01 EUR |
| 120+ | 11.28 EUR |
