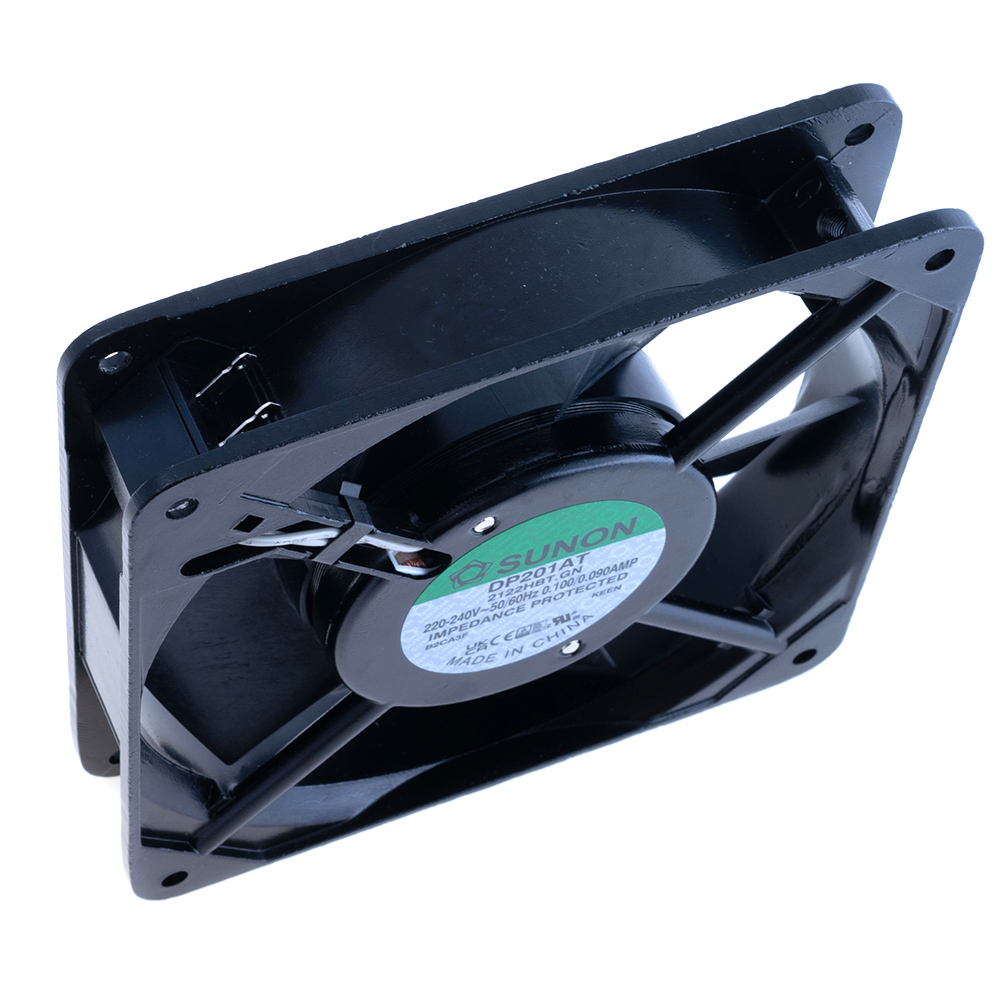

Lüfter Sunon Axial 120x120x25mm 230VAC 19W 2000U/min DP201AT2122HBT
Abmessungen, mm: 120x120x25
Spannung, V: 230 AC
Luftvolumen, m3/Stunde: 112
Leistung, Watt: 19
Lärm, dB: 45
Rotationsgeschwindigkeit, r/min: 2150
Beschreibung: Lager roll-on-
ZCODE: 8414 51 00 90
2 Stück - stock Köln
10 Stück - lieferbar in 3-4 Wochen
Anzahl | Preis ohne MwSt |
---|---|
1+ | 7 EUR |
Technische Details Lüfter Sunon Axial 120x120x25mm 230VAC 19W 2000U/min DP201AT2122HBT Sunon
Lüfter Sunon Axial 120x120x25mm 230VAC 19W 2000U/min Lager/Anschluß wählbar: DP201AT2122HBL (Kugellager/Leitungen) oder DP201AT2122HBT (Kugellager/Stecker) oder DP201AT2122HST (Gleitlager/Stecker)
Beschreibung:
DP201AT2122HBL
Betriebsspannung 230VAC
Startspannung 185VAC
Abmessungen: 120x120x25 mm
Lager: Kugellager
Leistung 19 W
Luftstrom 112 (±7%)m3/h
Drehzahl 2150(+/- 10%) U/min
Geräuschpegel 44 dBA
Statische Druck 3,55 mm H2O
Min. Isolationswiderstand 500MΩ
Rotormaterial Thermoplast
Gehäusematerial Aluminium
Temperaturbereich: -10...+70 °C
Anschluss 2 Leitungen 330mm
Gewicht 290 g
Produktcode 29592
DP201AT2122HBT
Betriebsspannung 230VAC
Startspannung 185VAC
Abmessungen: 120x120x25 mm
Lager: Kugellager
Leistung 19 W
Luftstrom 112 (±7%)m3/h
Drehzahl 2150(+/- 10%) U/min
Geräuschpegel 44 dBA
Statischer Druck 3,55 mm H2O
Min. Isolationswiderstand 500MΩ
Rotormaterial Thermoplast
Gehäusematerial Aluminium
Temperaturbereich: -10...+70 °C
Anschluss: Flachstecker 2,8x0,3mm
Gewicht 290 g
Produktcode 24995

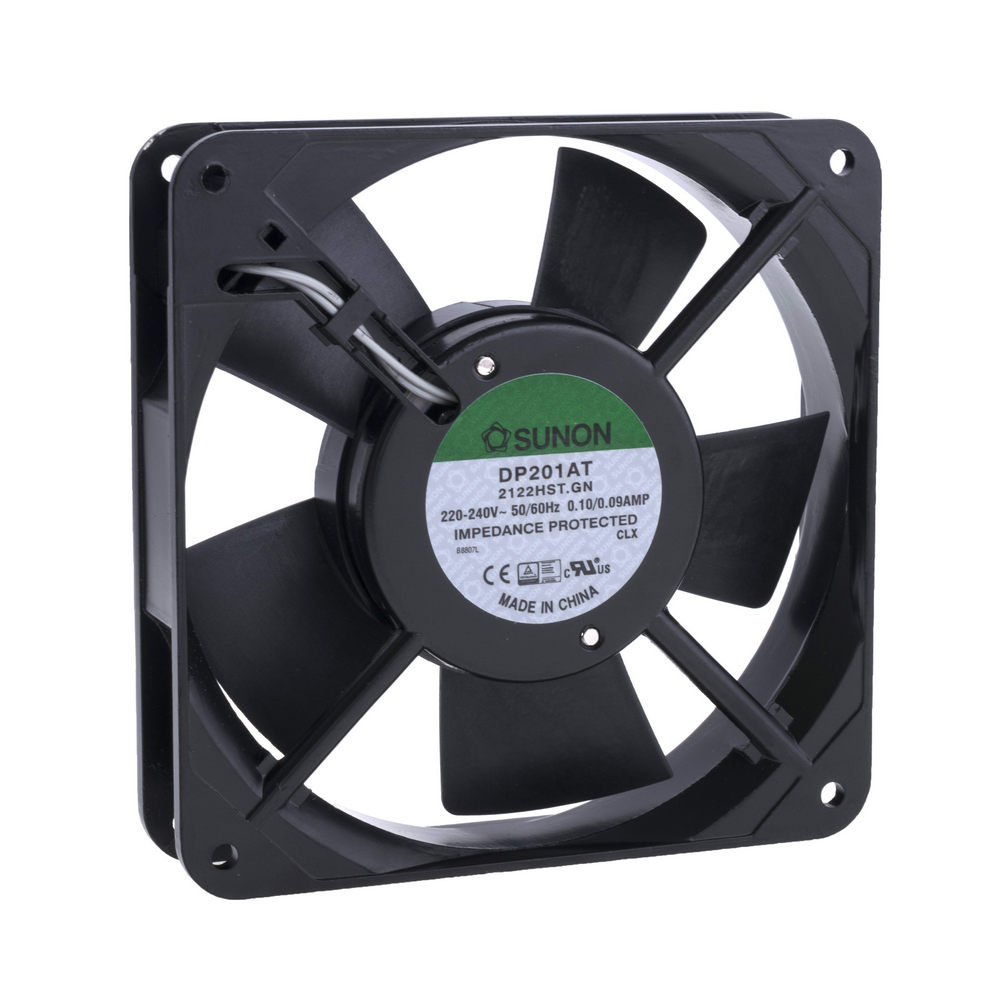

DP201AT2122HST
Betriebsspannung 230VAC
Startspannung 185VAC
Abmessungen: 120x120x25 mm
Lager: Gleitlager
Leistung 19 W
Luftstrom 109 (±7%)m3/h
Drehzahl 2000(+/- 10%) U/min
Geräuschpegel 43 dBA
Statischer Druck 3,3 mm H2O
Min. Isolationswiderstand 500MΩ
Rotormaterial Thermoplast
Gehäusematerial Aluminium
Temperaturbereich: -10...+70 °C
Anschluss: Flachstecker 2,8x0,3mm
Gewicht 290 g
Produktcode 46583
Möglichen Substitutionen Lüfter Sunon Axial 120x120x25mm 230VAC 19W 2000U/min DP201AT2122HBT Sunon
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||
---|---|---|---|---|---|---|---|---|---|
Lüfter Sunon Axial 120x120x25mm 230VAC 19W 2000U/min DP201AT2122HBL Produktcode: 29592 |
Hersteller : Sunon |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Abmessungen, mm: 120x120x25 Spannung, V: 230 AC Luftvolumen, m3/Stunde: 112 Leistung, Watt: 19 Lärm, dB: 45 Rotationsgeschwindigkeit, r/min: 2150 Beschreibung: Lager roll-on- ZCODE: 8414 51 00 90 |
verfügbar: 26 Stück
|
|
Verwandte Produkte Lüfter Sunon Axial 120x120x25mm 230VAC 19W 2000U/min DP201AT2122HBT Sunon
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
+3 |
Befestigung für Ventilatore und Gitter, Plastikklammer FSP-1 Produktcode: 62414 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Beschreibung: Befestigung |
verfügbar: 318 Stück
|
|
|||||||
+1 |
Befestigung für Ventilatore und Gitter, Plastikklammer FSP-2 Produktcode: 26792 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Beschreibung: Befestigung |
verfügbar: 80 Stück
|
|
Weitere Produktangebote Lüfter Sunon Axial 120x120x25mm 230VAC 19W 2000U/min DP201AT2122HBT nach Preis ab 9.3 EUR bis 61.07 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DP201AT2122HBT.GN | Hersteller : SUNON |
Category: AC230V Fans Description: Fan: AC; axial; 230VAC; 120x120x25mm; 112m3/h(±7%); 44dBA; 2150rpm Operating temperature: -10...70°C Kind of fan: axial Min. insulation resistance: 500MΩ Enclosure material: aluminium Current rating: 90mA Supply voltage: 230V AC Leads: connectors 2,8x0,3mm Frequency: 50Hz Type of fan: AC Fan dimensions: 120x120x25mm Impeller material: thermoplastic Flammability rating: UL94V-0 Kind of Bearing: ball bearing Fan efficiency: 112m3/h (±7%) Static pressure: 3.55mm H2O Noise level: 44dBA Rotational rate/speed: 2150rpm Current and power consumption tolerance: ±15% Power consumption: 19W Anzahl je Verpackung: 1 Stücke |
auf Bestellung 2446 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||||||
DP201AT2122HBT.GN | Hersteller : SUNON |
Category: AC230V Fans Description: Fan: AC; axial; 230VAC; 120x120x25mm; 112m3/h(±7%); 44dBA; 2150rpm Operating temperature: -10...70°C Kind of fan: axial Min. insulation resistance: 500MΩ Enclosure material: aluminium Current rating: 90mA Supply voltage: 230V AC Leads: connectors 2,8x0,3mm Frequency: 50Hz Type of fan: AC Fan dimensions: 120x120x25mm Impeller material: thermoplastic Flammability rating: UL94V-0 Kind of Bearing: ball bearing Fan efficiency: 112m3/h (±7%) Static pressure: 3.55mm H2O Noise level: 44dBA Rotational rate/speed: 2150rpm Current and power consumption tolerance: ±15% Power consumption: 19W |
auf Bestellung 2446 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||||
DP201AT-2122HBT.GN | Hersteller : Sunon | AC Fans Axial Fan, 120x120x25mm, 220-240VAC, 66/80CFM, 0.14/0.17"H2O, Ball, Terminals |
auf Bestellung 51 Stücke: Lieferzeit 224-238 Tag (e) |
|
|||||||||||||||||||
DP201AT2122HBT.GN | Hersteller : Sunon | AC Fan Ball Bearing 220V/240V 0.1A/0.09A 19W/18W 50Hz/60Hz 2150RPM/2500RPM 66CFM/80CFM 44dB/48dB Flange Mount |
auf Bestellung 2590 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||||
DP201AT-2122HBT.GN | Hersteller : Sunon Fans |
Description: FAN AXIAL 119X25.5MM 220/240VAC Power (Watts): 19.00W Packaging: Bulk Voltage - Rated: 220 ~ 240VAC Size / Dimension: Square - 119mm L x 119mm H Bearing Type: Ball RPM: 2500 RPM Air Flow: 80.0 CFM (2.24m³/min) Width: 25.50mm Weight: 0.65 lb (294.84 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Terminals Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 48.0dB(A) Static Pressure: 0.170 in H2O (42.3 Pa) Part Status: Active |
Produkt ist nicht verfügbar |
