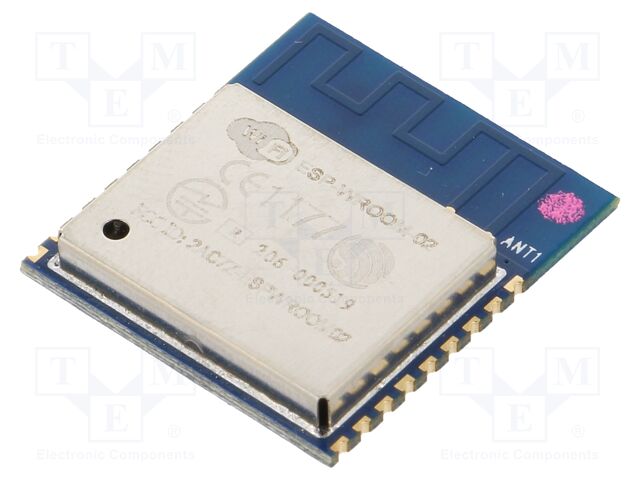

M1002H1600PH3Q0

M1002H1600PH3Q0 ESPRESSIF

ESP-WROOM-02.pdf Company Brochure_EN V1.6_Compressed.pdf Hersteller: ESPRESSIF
Category: IoT (WiFi/Bluetooth) modules
Description: Module: WiFi; PCB; FTP,HTTP,IEEE 802.11b/g/n,IPv4,TCP,UDP; SMD
Type of communications module: WiFi
Interface: GPIO; I2C; I2S; PWM; SDIO; SPI; UART
Memory: 8kB SRAM; 2MB FLASH
Components: ESP8266EX
Supply voltage: 3...3.6V DC
Communictions protocol: FTP; HTTP; IEEE 802.11b/g/n; IPv4; TCP; UDP
Dimensions: 18x20x3mm
Transmitter output power: 20dBm
Band: 2.412...2.484GHz
Receiver sensitivity: b: -91 dBm; g: -75 dBm; n: -72 dBm
Ciphering: AES; WPA2; WPA; WPS
Mounting: SMD
Kind of antenna: PCB
