Produkte > GOSSEN METRAWATT > M360F

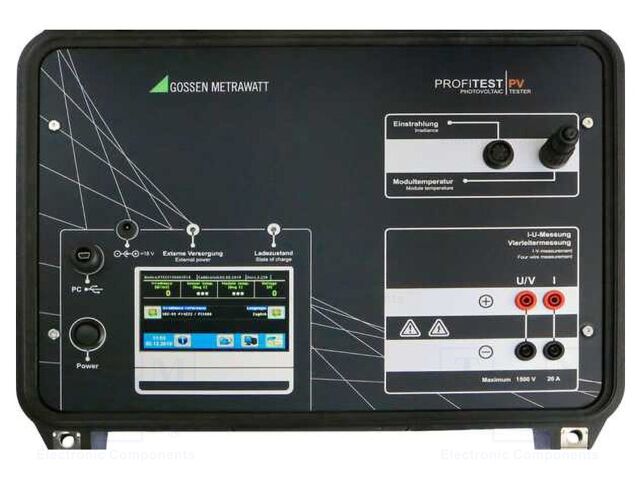

M360F GOSSEN METRAWATT

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFBFB24319A98540DC&compId=GM-M360F_EN_DTE.pdf?ci_sign=deeeb9641691554a8e542eef744bec2bd52cda95

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFBFB24319A985A0DC&compId=GM-M360F_DE_DTE.pdf?ci_sign=3a7dd853d05121cfbade359a67bc794b19499bfc

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFBFB2488686F4A0DC&compId=GM-M360F_EN_INS.pdf?ci_sign=6bce2859db75e9077a42edaf207162626e28a201

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFBFB2488686F500DC&compId=GM-M360F_DE_INS.pdf?ci_sign=b993e36318ccc6f4802eebfe48160088e8701064

Hersteller: GOSSEN METRAWATT
Category: PV and EVSE Testers and Meters
Description: Meter: appliance meter; 0÷1.5kV; 0÷20A; Temp: -40÷120°C
Battery/ rechargeable battery: rechargeable battery Li-Ion 11,25V x1
Interface: USB
Measuring instruments application: photovoltaics
Kind of display used: LCD; touch screen
Temperature measuring range: -40...120°C
Operating temperature: 0...50°C
DC current measuring range: 0...20A
DC voltage measuring range: 0...1.5kV
Test voltage: 0... 1.5kV DC; 25V DC; 100V DC; 500V DC; 1.5kV DC
Body dimensions: 410x328x175mm
Display resolution: 480x272
Standard equipment: etui; external temperature sensor; power supply; radiation sensor; software; test leads MC4; USB cable
Measurement: insolation; internal resistance; power; temperature
Type of meter: appliance meter
Measuring instrument features: battery level indication; memory built-in; tone signal

Produkt ist nicht verfügbar

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details M360F GOSSEN METRAWATT

Category: PV and EVSE Testers and Meters, Description: Meter: appliance meter; 0÷1.5kV; 0÷20A; Temp: -40÷120°C, Battery/ rechargeable battery: rechargeable battery Li-Ion 11,25V x1, Interface: USB, Measuring instruments application: photovoltaics, Kind of display used: LCD; touch screen, Temperature measuring range: -40...120°C, Operating temperature: 0...50°C, DC current measuring range: 0...20A, DC voltage measuring range: 0...1.5kV, Test voltage: 0... 1.5kV DC; 25V DC; 100V DC; 500V DC; 1.5kV DC, Body dimensions: 410x328x175mm, Display resolution: 480x272, Standard equipment: etui; external temperature sensor; power supply; radiation sensor; software; test leads MC4; USB cable, Measurement: insolation; internal resistance; power; temperature, Type of meter: appliance meter, Measuring instrument features: battery level indication; memory built-in; tone signal.
