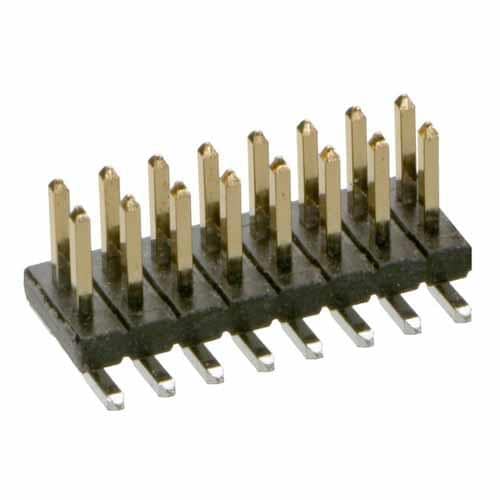

M50-3600842R Harwin Inc.
Hersteller: Harwin Inc.Description: 8+8 POS. MALE DIL VERTICAL SMT C
Features: Pick and Place
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 1A
Mounting Type: Surface Mount
Number of Positions: 16
Number of Rows: 2
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.15µin (0.080µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.039" (1.00mm)
Shrouding: Unshrouded
Insulation Material: Thermoplastic
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.118" (3.00mm)
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details M50-3600842R Harwin Inc.
Description: 8+8 POS. MALE DIL VERTICAL SMT C, Features: Pick and Place, Packaging: Bulk, Connector Type: Header, Cuttable, Current Rating (Amps): 1A, Mounting Type: Surface Mount, Number of Positions: 16, Number of Rows: 2, Style: Board to Board, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.15µin (0.080µm), Contact Finish - Post: Tin, Contact Shape: Square, Insulation Height: 0.039" (1.00mm), Shrouding: Unshrouded, Insulation Material: Thermoplastic, Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.118" (3.00mm).
Weitere Produktangebote M50-3600842R
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
M50-3600842R | Hersteller : Harwin |
Headers & Wire Housings 1.27MM HDR 2X8 VT SMT AU/SN |
Produkt ist nicht verfügbar |
|
| M50-3600842R | Hersteller : HARWIN |
Category: Board-to-board connectors Description: Connector: pin strips; socket; male; PIN: 16; ARCHER; 1A; SMT; 1.27mm Kind of package: reel Connector: socket Electrical mounting: SMT Kind of connector: male Mechanical mounting: on PCBs Contact plating: gold-plated Type of connector: pin strips Body material: PA6T Flammability rating: UL94V-0 Contacts pitch: 1.27mm Current rating: 1A Number of pins: 16 Connector pinout layout: 2x8 Manufacturer series: ARCHER |
Produkt ist nicht verfügbar |
