Produkte > C&K > MA00-L1-N-C-Q-D

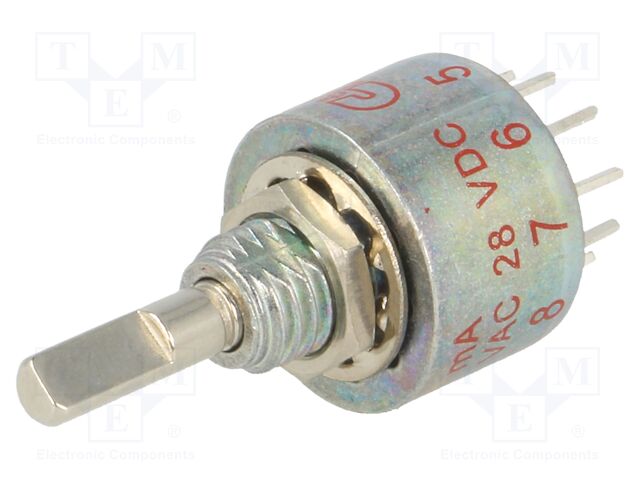

MA00-L1-N-C-Q-D

MA00-L1-N-C-Q-D C&K


pVersion=0046&contRep=ZT&docId=E1C0517FC9AC68F1A6F5005056AB5A8F&compId=m_series.pdf?ci_sign=795258e71d49c93de4886c224f59ef514dc845a6 Hersteller: C&K
Category: Rotary Switches
Description: Switch: rotary; Pos: 10; 0.25A/125VAC; 0.25A/28VDC; Poles number: 1
Type of switch: rotary
Number of positions: 10
Stable positions number: 10
AC contacts rating @R: 0.25A / 125V AC
Operating temperature: -30...85°C
Leads: for PCB
Contact material: silver
Switching method: BBM (non-shorting)
Indexed positions: 36°
Manufacturer series: M
Shaft surface: D spring
Min. insulation resistance: 10GΩ
Body dimensions: Ø13.34x9.4mm
Electrical life: 10000 cycles
Shaft diameter: 3.17mm
Shaft length: 10mm
Fastening thread: 1/4"-28UNF-2A
Poles number: 1
DC contacts rating @R: 0.25A / 28V DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 79 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
5+16.73 EUR
480+16.22 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details MA00-L1-N-C-Q-D C&K

Category: Rotary Switches, Description: Switch: rotary; Pos: 10; 0.25A/125VAC; 0.25A/28VDC; Poles number: 1, Type of switch: rotary, Number of positions: 10, Stable positions number: 10, AC contacts rating @R: 0.25A / 125V AC, Operating temperature: -30...85°C, Leads: for PCB, Contact material: silver, Switching method: BBM (non-shorting), Indexed positions: 36°, Manufacturer series: M, Shaft surface: D spring, Min. insulation resistance: 10GΩ, Body dimensions: Ø13.34x9.4mm, Electrical life: 10000 cycles, Shaft diameter: 3.17mm, Shaft length: 10mm, Fastening thread: 1/4"-28UNF-2A, Poles number: 1, DC contacts rating @R: 0.25A / 28V DC, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote MA00-L1-N-C-Q-D nach Preis ab 16.73 EUR bis 38.77 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
MA00-L1-N-C-Q-D MA00-L1-N-C-Q-D Hersteller : C&K pVersion=0046&contRep=ZT&docId=E1C0517FC9AC68F1A6F5005056AB5A8F&compId=m_series.pdf?ci_sign=795258e71d49c93de4886c224f59ef514dc845a6 Category: Rotary Switches
Description: Switch: rotary; Pos: 10; 0.25A/125VAC; 0.25A/28VDC; Poles number: 1
Type of switch: rotary
Number of positions: 10
Stable positions number: 10
AC contacts rating @R: 0.25A / 125V AC
Operating temperature: -30...85°C
Leads: for PCB
Contact material: silver
Switching method: BBM (non-shorting)
Indexed positions: 36°
Manufacturer series: M
Shaft surface: D spring
Min. insulation resistance: 10GΩ
Body dimensions: Ø13.34x9.4mm
Electrical life: 10000 cycles
Shaft diameter: 3.17mm
Shaft length: 10mm
Fastening thread: 1/4"-28UNF-2A
Poles number: 1
DC contacts rating @R: 0.25A / 28V DC
auf Bestellung 79 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
5+16.73 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
MA00L1NCQD MA00L1NCQD Hersteller : C&K m.pdf Description: SWITCH ROTARY 10POS 250MA 125V
Packaging: Tray
Contact Finish: Silver
Current Rating (Amps): 250mA (AC/DC)
Mounting Type: Panel Mount, Through Hole
Number of Positions: 10
Termination Style: PC Pin
Actuator Length: 10.16mm
Actuator Type: Flatted (3.17mm Dia)
Angle of Throw: 36°
Number of Decks: 1
Number of Poles per Deck: 1
Circuit per Deck: SP10T
Contact Material: Copper Alloy
Contact Timing: Non-Shorting (BBM)
Index Stops: Continuous
Depth Behind Panel: 10.42mm
Voltage Rating - AC: 125 V
Voltage Rating - DC: 28 V
auf Bestellung 2567 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+38.77 EUR
5+33.29 EUR
10+31.2 EUR
25+28.59 EUR
40+26.77 EUR
80+25.11 EUR
240+23.03 EUR
480+22.59 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MA00L1NCQD MA00L1NCQD Hersteller : C&K Components M4feb-1159757.pdf Rotary Switches SP 10 POS. 36 DEG.
auf Bestellung 44 Stücke:
Lieferzeit 10-14 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
