Produkte > PANASONIC > MAP1T45Z11
MAP1T45Z11

MAP1T45Z11 PANASONIC

pVersion=0046&contRep=ZT&docId=005056AB752F1EE795EA269A34C06747&compId=MAC-I-series-en.pdf?ci_sign=8d733410d02308e6b6dd8dd1c29fff7e8d4cfb0c Hersteller: PANASONIC
Category: Limit Switches

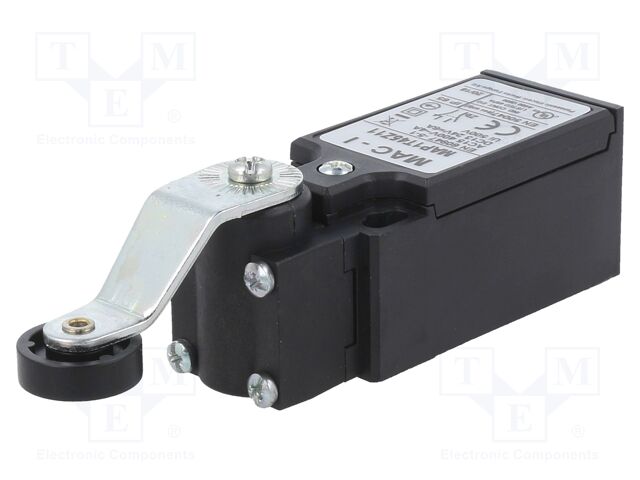

Description: Limit switch; lever R 43,5mm, plastic roller Ø18mm; NO + NC
Type of sensor: limit switch
Output configuration: NO + NC
Connection: PG13,5
Body material: plastic
Switches features: snap action contacts
Operating temperature: -25...70°C
Mounting holes pitch: 20...22mm
Body dimensions: 30x30.3x53mm
DC contacts rating @R: 0.27A / 250V DC
Number of mounting holes: 2
AC contacts rating @R: 3.1A / 230V AC
Contact current max.: 10A
Switched voltage: max. 250V DC; max. 400V AC
IP rating: IP65
Kind of actuator: lever R 43,5mm, plastic roller Ø18mm
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
3+23.84 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details MAP1T45Z11 PANASONIC

Category: Limit Switches, Description: Limit switch; lever R 43,5mm, plastic roller Ø18mm; NO + NC, Type of sensor: limit switch, Output configuration: NO + NC, Connection: PG13,5, Body material: plastic, Switches features: snap action contacts, Operating temperature: -25...70°C, Mounting holes pitch: 20...22mm, Body dimensions: 30x30.3x53mm, DC contacts rating @R: 0.27A / 250V DC, Number of mounting holes: 2, AC contacts rating @R: 3.1A / 230V AC, Contact current max.: 10A, Switched voltage: max. 250V DC; max. 400V AC, IP rating: IP65, Kind of actuator: lever R 43,5mm, plastic roller Ø18mm.
