Produkte > Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör > Lüfter 40x40x20, 12V, (MB40201V1-A99) Sunon

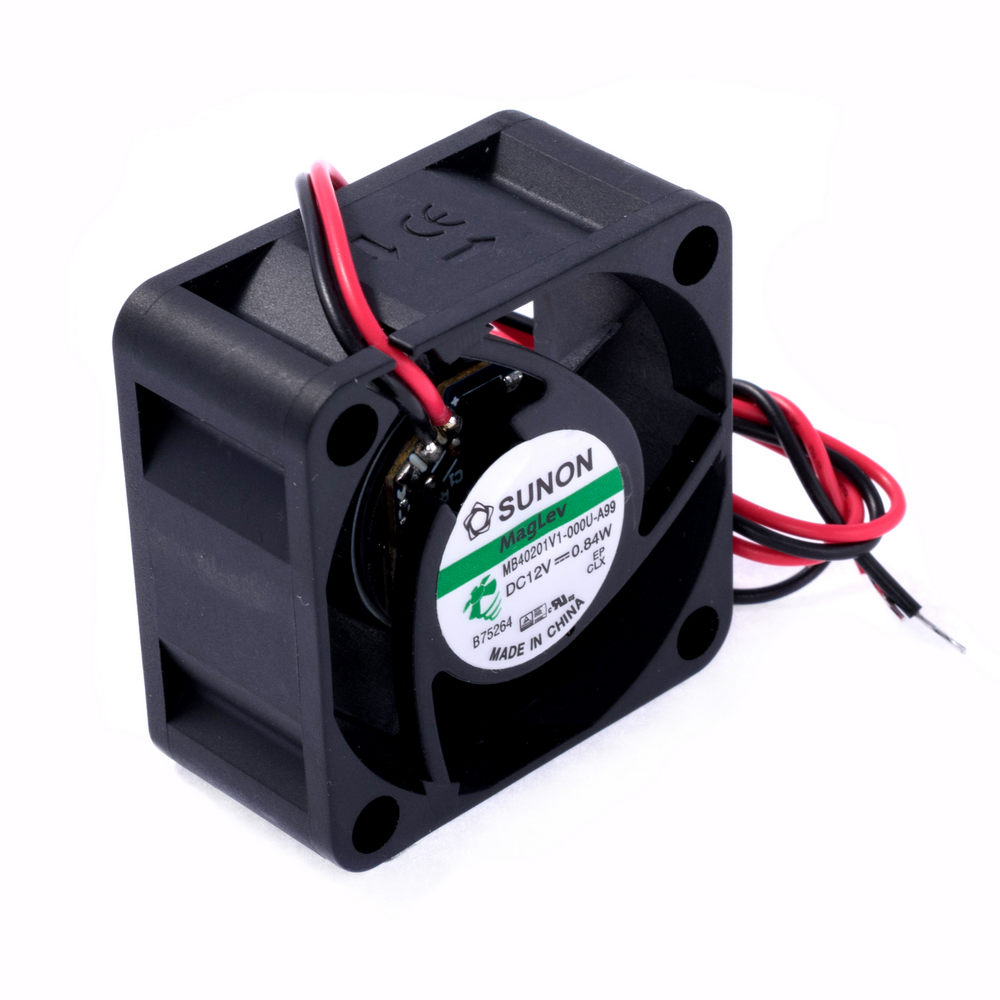

Lüfter 40x40x20, 12V, (MB40201V1-A99) Sunon
Produktcode: 51768
zu Favoriten hinzufügen
Lieblingsprodukt
Hersteller: Sunon
Abmessungen, mm: 40x40x20 mm
Spannung, V: 12 DC
Luftvolumen, m³/h: 15,1 m³/h
Leistung, W: 0,84 W
Lärm, dB: 25,5 dB
Drehzahl, rpm: 7200 rpm
Beschreibung: Vapo-Lager (magnetische Lagerung)
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote Lüfter 40x40x20, 12V, (MB40201V1-A99)
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
| MB40201V1-000U-A99 | Sunon Fan |
MB40201V1-000U-A99 MB40201V1-A99 Fan: DC; axial; 12VDC; 40x40x20mm; 15.1m3/h; 25.5dBA; Vapo; 5.3mmH2O Вентилятори та Управління тепловими режимами |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH | |
| MB40201V1-000U-A99 | Sunon Fans |
Description: FAN AXIAL 40X20MM 12VDC WIREFeatures: Auto Restart Packaging: Bulk Voltage - Rated: 12VDC Size / Dimension: Square - 40mm L x 40mm H Bearing Type: Vapo-Bearing™ RPM: 7200 RPM Air Flow: 8.9 CFM (0.249m³/min) Width: 20.00mm Weight: 0.068 lb (30.84 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 25.5dB(A) Static Pressure: 0.210 in H2O (52.3 Pa) Power (Watts): 840 mW |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH | |
|
MB40201V1-000U-A99 | SUNON |
Category: DC12V FansDescription: Fan: DC; axial; 12VDC; 40x40x20mm; 15.1m3/h; 25.5dBA; Vapo; 5.3mmH2O Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V DC Fan dimensions: 40x40x20mm Power consumption: 0.84W Current rating: 70mA Fan efficiency: 15.1m3/h Noise level: 25.5dBA Kind of Bearing: Vapo Rotational rate/speed: 7200 (±15%)rpm Min. insulation resistance: 500MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: E Leads: leads x2 Lead length: 0.3m Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 5.3mm H2O Wire size: 26AWG Current and power consumption tolerance: ±15% |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| MB40201V1-000U-A99 |
![]() |
Hersteller: Sunon Fan
MB40201V1-000U-A99 MB40201V1-A99 Fan: DC; axial; 12VDC; 40x40x20mm; 15.1m3/h; 25.5dBA; Vapo; 5.3mmH2O Вентилятори та Управління тепловими режимами
MB40201V1-000U-A99 MB40201V1-A99 Fan: DC; axial; 12VDC; 40x40x20mm; 15.1m3/h; 25.5dBA; Vapo; 5.3mmH2O Вентилятори та Управління тепловими режимами
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| MB40201V1-000U-A99 |
![]() |
Hersteller: Sunon Fans
Description: FAN AXIAL 40X20MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Vapo-Bearing™
RPM: 7200 RPM
Air Flow: 8.9 CFM (0.249m³/min)
Width: 20.00mm
Weight: 0.068 lb (30.84 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 25.5dB(A)
Static Pressure: 0.210 in H2O (52.3 Pa)
Power (Watts): 840 mW
Description: FAN AXIAL 40X20MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Vapo-Bearing™
RPM: 7200 RPM
Air Flow: 8.9 CFM (0.249m³/min)
Width: 20.00mm
Weight: 0.068 lb (30.84 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 25.5dB(A)
Static Pressure: 0.210 in H2O (52.3 Pa)
Power (Watts): 840 mW
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| MB40201V1-000U-A99 |
![]() |
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x20mm; 15.1m3/h; 25.5dBA; Vapo; 5.3mmH2O
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Fan dimensions: 40x40x20mm
Power consumption: 0.84W
Current rating: 70mA
Fan efficiency: 15.1m3/h
Noise level: 25.5dBA
Kind of Bearing: Vapo
Rotational rate/speed: 7200 (±15%)rpm
Min. insulation resistance: 500MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: E
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 5.3mm H2O
Wire size: 26AWG
Current and power consumption tolerance: ±15%
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x20mm; 15.1m3/h; 25.5dBA; Vapo; 5.3mmH2O
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Fan dimensions: 40x40x20mm
Power consumption: 0.84W
Current rating: 70mA
Fan efficiency: 15.1m3/h
Noise level: 25.5dBA
Kind of Bearing: Vapo
Rotational rate/speed: 7200 (±15%)rpm
Min. insulation resistance: 500MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: E
Leads: leads x2
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 5.3mm H2O
Wire size: 26AWG
Current and power consumption tolerance: ±15%
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
