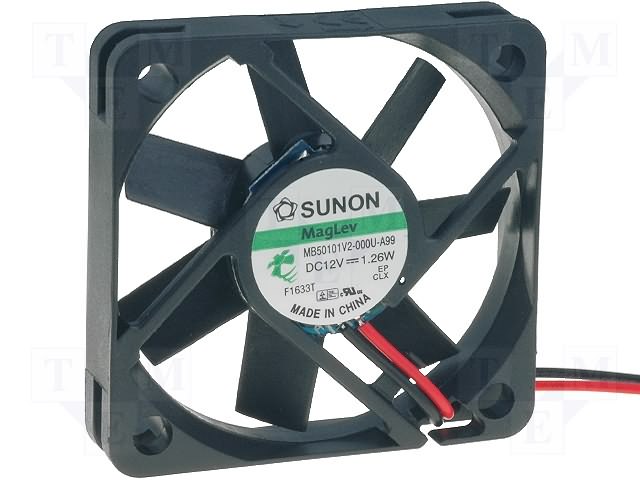

MB50101V2-A99 (MB50101V2-000U-A99) Sunon
Produktcode: 60584
Hersteller: SunonAbmessungen, mm: 50x50x10
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 18
Leistung, Watt: 1,26
Lärm, dB: 26
Rotationsgeschwindigkeit, r/min: 4300
Beschreibung: Lager Vapo (Magnetschwebe)
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote MB50101V2-A99 (MB50101V2-000U-A99)
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
MB50101V2-000U-A99 | Hersteller : Sunon Fans |
Description: FAN AXIAL 50X10MM 12VDC WIRE Packaging: Tray Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Square - 50mm L x 50mm H Bearing Type: Vapo-Bearing™ RPM: 4300 RPM Air Flow: 11.0 CFM (0.308m³/min) Width: 10.00mm Weight: 0.044 lb (19.96 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 26.0dB(A) Static Pressure: 0.110 in H2O (27.4 Pa) Part Status: Obsolete Power (Watts): 1.26 W |
Produkt ist nicht verfügbar |
||
MB50101V2-000U-A99 | Hersteller : Sunon | DC Fans DC Fan, 50x10mm, 12VDC, 11CFM, 1.26W, 26dBA, 4300RPM, 0.11inch H2O, Vapo Bearing, MagLev Motor, Auto Restart |
Produkt ist nicht verfügbar |
||
MB50101V2-000U-A99 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 50x50x10mm; 18.6m3/h; 26dBA; Vapo; Len: 300mm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 6...13.8V Fan dimensions: 50x50x10mm Power consumption: 1.26W Current rating: 0.105A Fan efficiency: 18.6m3/h Noise level: 26dBA Kind of Bearing: Vapo Rotational rate/speed: 4300 (±15%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 500MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: E Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.3m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 2.79mm H2O Wire size: 26AWG |
Produkt ist nicht verfügbar |
