Produkte > Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör > MC25101V1-G99 Lüfter Axial Sunon 25x25x10 12VDC

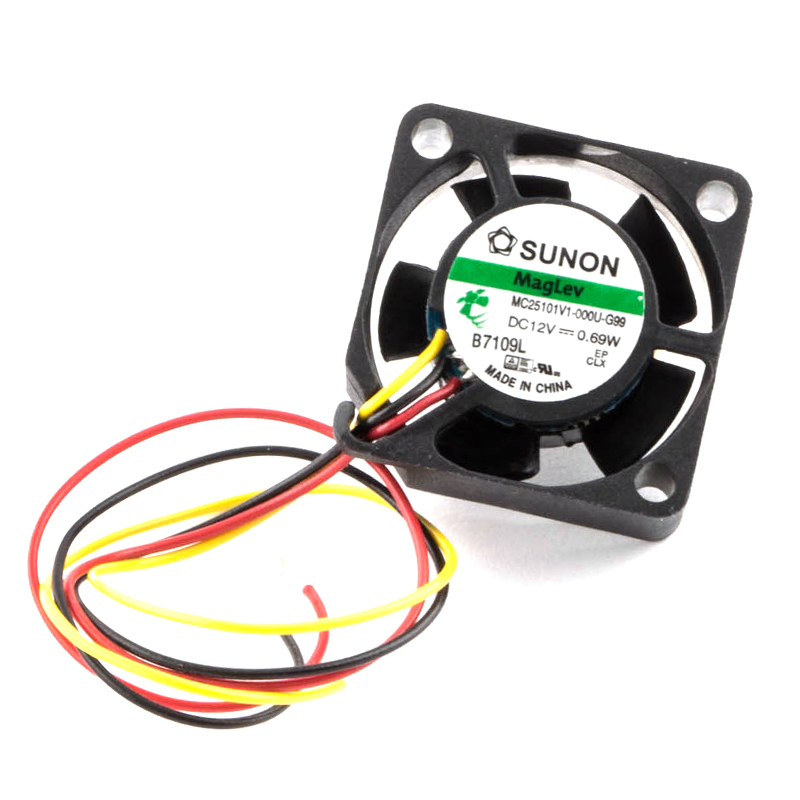

MC25101V1-G99 Lüfter Axial Sunon 25x25x10 12VDC
Produktcode: 85485
Hersteller: SunonAbmessungen, mm: 25*25*10
Spannung, V: 12DC
Luftvolumen, m3/Stunde: 5.95
Leistung, Watt: 0.69
Lärm, dB: 23
Rotationsgeschwindigkeit, r/min: 13000
Beschreibung: Lager Vapo (Magneschwebe)
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details MC25101V1-G99 Lüfter Axial Sunon 25x25x10 12VDC Sunon
Lüfter Axial Sunon 25x25x10 12VDC Kleine Leise Lüfter
MC25101V1-G99
Eigenschaften:
Betriebsspannung nominal 12VDC
Betriebsspannungsbereich
4,5…13,8 VDC
Abmessungen: 25x25x10 mm
Lager: Vapo
Leistung
0,69 W
Luftstrom 5,95
m3/h
Drehzahl 13000(+/-
20%) U/min
Geräuschpegel
23 dBA
Statische Druck 6,3 mm H2O
Isolationswiderstand
500MOhm
Temperaturbereich: -10...+70 °C
Anschluss 3 Leitungen 150mm
Gewicht 7,8 g
Produktcode 85485
Weitere Produktangebote MC25101V1-G99 Lüfter Axial Sunon 25x25x10 12VDC
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
MC25101V1-000U-G99 | Hersteller : Sunon Fans |
Description: FAN AXIAL 25X10MM 12VDC WIRE Packaging: Bulk Features: Auto Restart, Speed Sensor (Tach) Voltage - Rated: 12VDC Size / Dimension: Square - 25mm L x 25mm H Bearing Type: Vapo-Bearing™ RPM: 13000 RPM Air Flow: 3.5 CFM (0.098m³/min) Width: 10.00mm Weight: 0.017 lb (7.71 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 3 Wire Leads Approval Agency: CUR, TUV, UL Fan Type: Tubeaxial Noise: 23.0dB(A) Static Pressure: 0.250 in H2O (62.3 Pa) Part Status: Obsolete Power (Watts): 690 mW |
Produkt ist nicht verfügbar |
||
MC25101V1-000U-G99 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 25x25x10mm; 5.95m3/h; 23dBA; Vapo; Out: F type Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V Fan dimensions: 25x25x10mm Power consumption: 690mW Current rating: 57mA Fan efficiency: 5.95m3/h Noise level: 23dBA Kind of Bearing: Vapo Signal output: F type Rotational rate/speed: 13000 (±20%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 500MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x3 Operating temperature: -10...70°C Cable length: 0.15m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 6.3mm H2O Wire size: 28AWG |
Produkt ist nicht verfügbar |
