Produkte > SUNON > ME70201V1-000U-A99

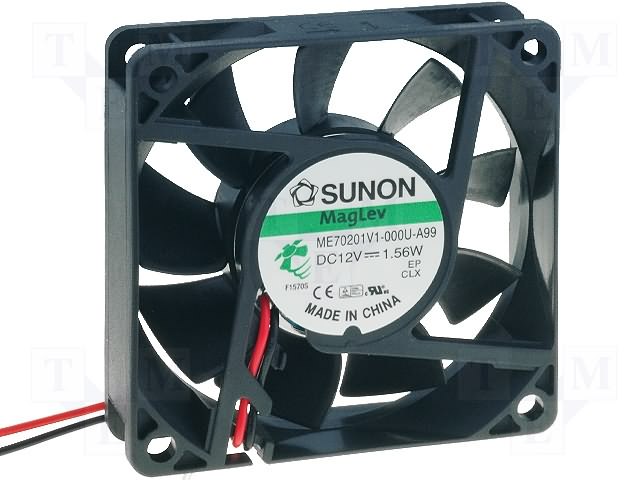

ME70201V1-000U-A99

ME70201V1-000U-A99 SUNON


Sunon DC Brushless Fan & Blower.pdf ME70201V1-A99.pdf Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 70x70x20mm; 49m3/h; 33dBA; Vapo; Len: 300mm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V
Fan dimensions: 70x70x20mm
Power consumption: 1.56W
Current rating: 0.13A
Fan efficiency: 49m3/h
Noise level: 33dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3200 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: Autorestart
Fan motor: brushless DC
Static pressure: 3.55mm H2O
Wire size: 24AWG
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4037 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis ohne MwSt
12+6.01 EUR
13+ 5.58 EUR
50+ 4.58 EUR
200+ 3.58 EUR
Mindestbestellmenge: 12
Produktrezensionen
Produktbewertung abgeben

Technische Details ME70201V1-000U-A99 SUNON

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 70x70x20mm; 49m3/h; 33dBA; Vapo; Len: 300mm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V, Fan dimensions: 70x70x20mm, Power consumption: 1.56W, Current rating: 0.13A, Fan efficiency: 49m3/h, Noise level: 33dBA, Kind of Bearing: Vapo, Rotational rate/speed: 3200 (±10%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.3m, Flammability rating: UL94V-0, Additional functions: Autorestart, Fan motor: brushless DC, Static pressure: 3.55mm H2O, Wire size: 24AWG, Anzahl je Verpackung: 1 Stücke.
