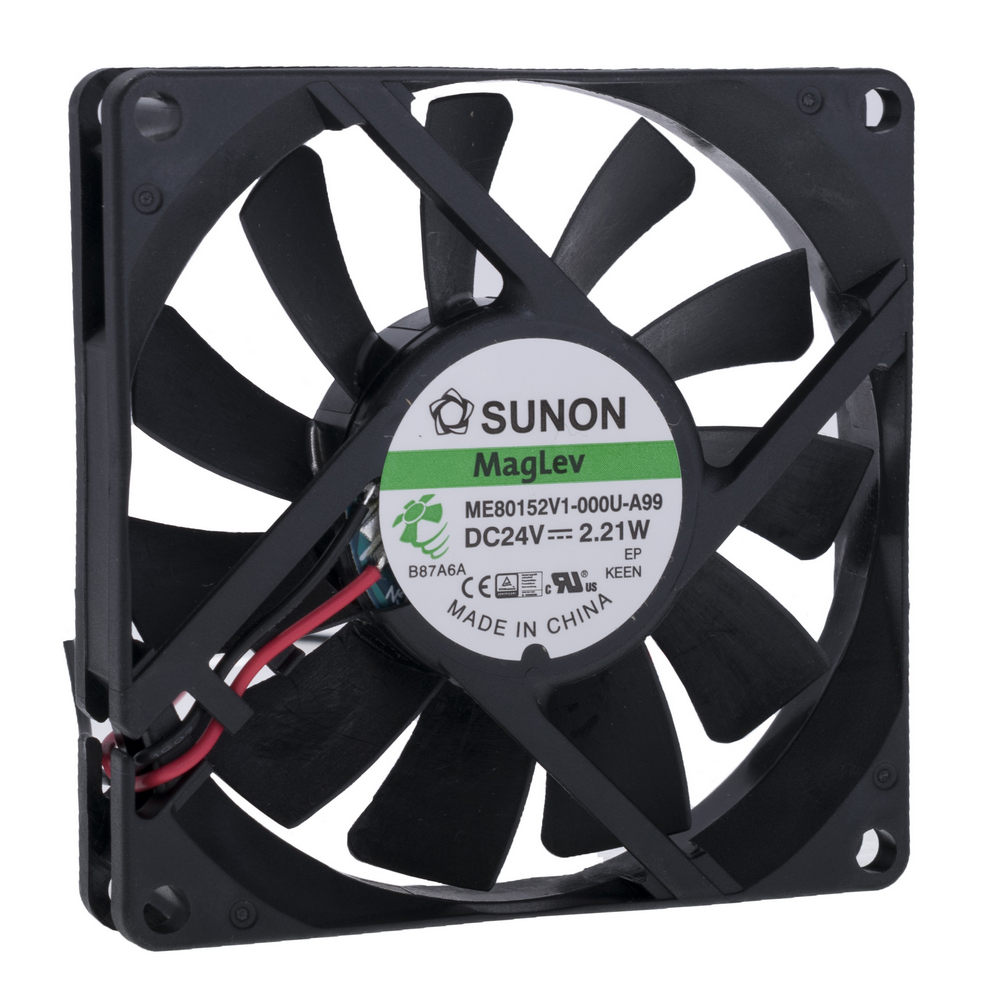

ME80152V1-000U-A99 SUNON
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x15mm; 62.86m3/h; 34.7dBA; Vapo; 24AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 8...27.6V
Fan dimensions: 80x80x15mm
Power consumption: 2.21W
Current rating: 92mA
Fan efficiency: 62.86m3/h
Noise level: 34.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 3.55mm H2O
Wire size: 24AWG
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x15mm; 62.86m3/h; 34.7dBA; Vapo; 24AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 8...27.6V
Fan dimensions: 80x80x15mm
Power consumption: 2.21W
Current rating: 92mA
Fan efficiency: 62.86m3/h
Noise level: 34.7dBA
Kind of Bearing: Vapo
Rotational rate/speed: 3000 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 3.55mm H2O
Wire size: 24AWG
auf Bestellung 590 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
11+ | 7.06 EUR |
12+ | 6.12 EUR |
50+ | 5.03 EUR |
200+ | 4.35 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details ME80152V1-000U-A99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 80x80x15mm; 62.86m3/h; 34.7dBA; Vapo; 24AWG, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 8...27.6V, Fan dimensions: 80x80x15mm, Power consumption: 2.21W, Current rating: 92mA, Fan efficiency: 62.86m3/h, Noise level: 34.7dBA, Kind of Bearing: Vapo, Rotational rate/speed: 3000 (±10%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.3m, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 3.55mm H2O, Wire size: 24AWG, Anzahl je Verpackung: 1 Stücke.
