ME80251V1-G99

ME80251V1-G99 Sunon


Produktcode: 103968
Hersteller: Sunon
Abmessungen, mm: 80x80x25 mm
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 69,7 м³/год.
Leistung, Watt: 1,7 Вт
Lärm, dB: 33 дБ
Rotationsgeschwindigkeit, r/min: 3200 об/хв
Beschreibung: Підшипник Vapo (магнітна підвіска)
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Weitere Produktangebote ME80251V1-G99

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis

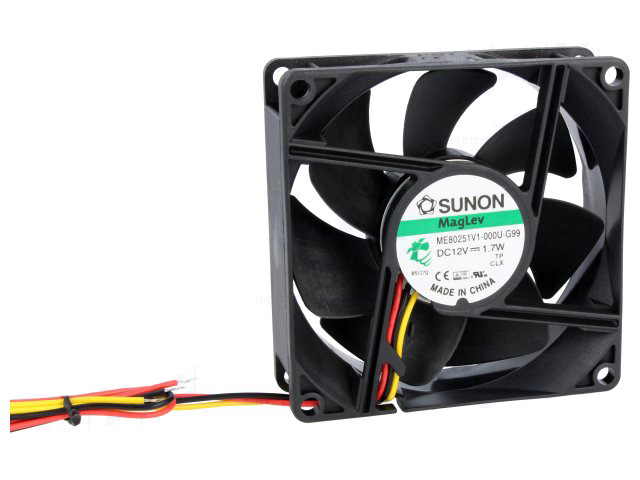

ME80251V1-000U-G99 ME80251V1-000U-G99 Hersteller : Sunon Fans ME80251V1-000U-G99.pdf Description: FAN AXIAL 80X25MM 12VDC WIRE
Packaging: Box
Features: Auto Restart, Speed Sensor (Tach)
Voltage - Rated: 12VDC
Size / Dimension: Square - 80mm L x 80mm H
Bearing Type: Vapo-Bearing™
RPM: 3200 RPM
Air Flow: 41.0 CFM (1.15m³/min)
Width: 25.00mm
Weight: 0.171 lb (77.56 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 3 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 33.0dB(A)
Static Pressure: 0.180 in H2O (44.8 Pa)
Part Status: Obsolete
Power (Watts): 1.7 W
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
ME80251V1-000U-G99 Hersteller : Sunon Sunon_08142019_ME80251V1-000U-G99.pdf DC Fans
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
ME80251V1-000U-G99 ME80251V1-000U-G99 Hersteller : SUNON pVersion=0046&contRep=ZT&docId=005056AB752F1EE69BCFD9F3F6A6CFA8&compId=Sunon%20DC%20Brushless%20Fan%20%26%20Blower.pdf?ci_sign=a0c7d956948f5b35d6b13385113d437006f0ea7b pVersion=0046&contRep=ZT&docId=E1C043AE18E10EF1A6F5005056AB5A8F&compId=(D08037180G-00)-1.pdf?ci_sign=2af1a7e8bf6e9af5284bc573f8370ad675390eb6 Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 80x80x25mm; 69.7m3/h; 33dBA; Vapo; Out: F type
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V DC
Fan dimensions: 80x80x25mm
Power consumption: 1.7W
Current rating: 0.145A
Fan efficiency: 69.7m3/h
Noise level: 33dBA
Kind of Bearing: Vapo
Signal output: F type
Rotational rate/speed: 3200 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x3
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 4.57mm H2O
Wire size: 28AWG
Current and power consumption tolerance: ±15%
Insulation class: E
