METRAHIT ENERGY DC POWER SET GOSSEN METRAWATT
Hersteller: GOSSEN METRAWATTCategory: Portable digital multimeters
Description: Digital multimeter; IR; LCD; (60000); VDC: 60mV,600mV,6V,60V,600V
Continuity test: acoustic indication; <500Ω

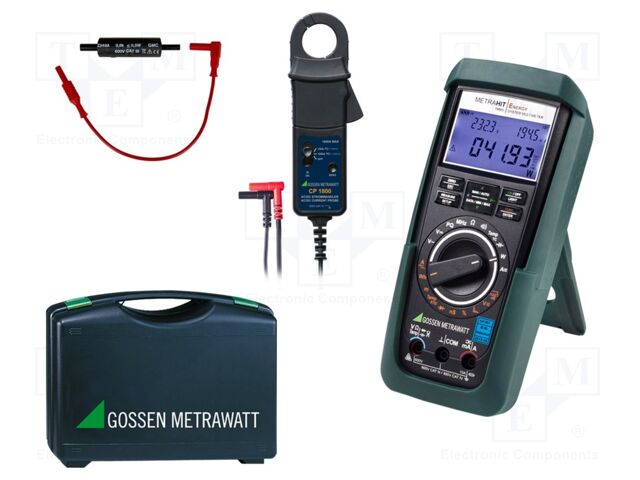

Standard equipment: calibration certificate DAkkS; carrying strap; CP1800 - current clamp; hard case; shunt SR9800; test leads; user's manual
Measuring instrument features: auto and manual ranging; impact resistant holster; operates with thermocouple types: K, Pt100, PT1000
Power supply: battery LR6 AA 1,5V x2
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
Type of meter: digital multimeter
Test: diodes
IP rating: IP52
Interface: IR
Kind of display used: LCD
True effective value measurement: True RMS AC; True RMS AC+DC
Temperature measuring range: -150...1372°C
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC voltage measuring accuracy: ±(0.02% + 15 digit)
Frequency measuring accuracy: ±(0.05%+5 digit)
DC current measuring accuracy: ±(0.05% + 20 digit)
AC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V
DC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V
Temperature measurement resolution: 0.1°C
Resistance measuring accuracy: ±(0.1%+5 digit)
Dimensions (W x H x D): 200x87x45mm
AC voltage measuring accuracy: ±(0.2% + 30 digit)
AC current measuring accuracy: ±(0.5% + 25 digit)
Capacitance measuring accuracy: ±(1%+ 6 digit)
Producer guarantee (months): 36
Weight with battery: 400g
Frequency measuring range: 600Hz; 6kHz; 60kHz; 300kHz
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Display parameters: (60000)
Measurement: AC current; active electric energy; active power; AC voltage; apparent electric energy; apparent power; capacitance; conductance; crest factor; DC current; DC voltage; frequency; harmonics; power factor; reactive electric energy; reactive power; resistance; temperature
