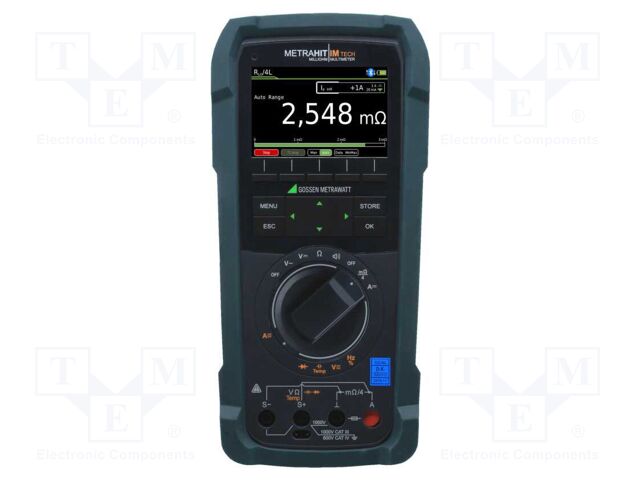

METRAHIT IM TECH BT GOSSEN METRAWATT
Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth; colour,LCD TFT 3,5"; (30000)
Manufacturer series: METRAHIT
AC voltage measuring accuracy: ±(0.5% + 30 digit)
DC current measuring accuracy: ±(0.15% + 10 digit)
DC voltage measuring accuracy: ±(0.15% + 10 digit)
Resistance measuring accuracy: ±(0.15%+10 digit)
Dimensions (W x H x D): 235x105x56mm
AC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
DC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
AC current measuring accuracy: ±(0.5% + 30 digit)
Capacitance measuring accuracy: ±(1%+ 6 digit)
Diode test: 4.5V
Producer guarantee (months): 36
Frequency measuring range: 300Hz; 3kHz; 30kHz; 300kHz
Resistance measuring range: 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Display resolution: 320x480
Weight with battery: 700g
Display parameters: (30000)
Measurement: AC current; AC voltage; capacitance; continuity; current (with current clamps); DC current; DC voltage; frequency; insulation resistance; resistance (2-wire); resistance (4-wire); temperature
Continuity test: acoustic indication; <90Ω
Measuring instrument features: auto and manual ranging; automatic blocking sockets for the current input; current measurement with clamp sensors; HOLD function; impact resistant holster; interturn short-circuit detection with COIL test adapter; low-pass filter; MIN/MAX function; operates with thermocouple types: K, Pt100, PT1000; polarization index (PI) and dielelectric absorption ratio (DAR); push/print function transfers measured values to software by pressing a key
Interface: Bluetooth
Standard equipment: calibration certificate DAkkS; card with registration key for the software; hard case; Kelvin clip; power supply; test leads KS17-2; test probe x1; user's manual
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Kind of display used: colour; LCD TFT 3,5"
Type of meter: digital multimeter
IP rating: IP52
Power supply: rechargeable battery Li-Po 3,7V 4000mAh x1
Battery/ rechargeable battery: rechargeable battery Li-Po 3,7V 4000mAh x1
True effective value measurement: True RMS
Bargraph: yes
Temperature measuring range: -250...1372°C
Capacitance measuring range: 30nF; 300nF; 3µF; 30µF; 300µF
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 1A
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 1A
Frequency measuring accuracy: ±(0.05%+5 digit)
Temperature measurement resolution: 0.1°C
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth; colour,LCD TFT 3,5"; (30000)
Manufacturer series: METRAHIT
AC voltage measuring accuracy: ±(0.5% + 30 digit)
DC current measuring accuracy: ±(0.15% + 10 digit)
DC voltage measuring accuracy: ±(0.15% + 10 digit)
Resistance measuring accuracy: ±(0.15%+10 digit)
Dimensions (W x H x D): 235x105x56mm
AC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
DC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
AC current measuring accuracy: ±(0.5% + 30 digit)
Capacitance measuring accuracy: ±(1%+ 6 digit)
Diode test: 4.5V
Producer guarantee (months): 36
Frequency measuring range: 300Hz; 3kHz; 30kHz; 300kHz
Resistance measuring range: 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Display resolution: 320x480
Weight with battery: 700g
Display parameters: (30000)
Measurement: AC current; AC voltage; capacitance; continuity; current (with current clamps); DC current; DC voltage; frequency; insulation resistance; resistance (2-wire); resistance (4-wire); temperature
Continuity test: acoustic indication; <90Ω
Measuring instrument features: auto and manual ranging; automatic blocking sockets for the current input; current measurement with clamp sensors; HOLD function; impact resistant holster; interturn short-circuit detection with COIL test adapter; low-pass filter; MIN/MAX function; operates with thermocouple types: K, Pt100, PT1000; polarization index (PI) and dielelectric absorption ratio (DAR); push/print function transfers measured values to software by pressing a key
Interface: Bluetooth
Standard equipment: calibration certificate DAkkS; card with registration key for the software; hard case; Kelvin clip; power supply; test leads KS17-2; test probe x1; user's manual
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Kind of display used: colour; LCD TFT 3,5"
Type of meter: digital multimeter
IP rating: IP52
Power supply: rechargeable battery Li-Po 3,7V 4000mAh x1
Battery/ rechargeable battery: rechargeable battery Li-Po 3,7V 4000mAh x1
True effective value measurement: True RMS
Bargraph: yes
Temperature measuring range: -250...1372°C
Capacitance measuring range: 30nF; 300nF; 3µF; 30µF; 300µF
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 1A
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 1A
Frequency measuring accuracy: ±(0.05%+5 digit)
Temperature measurement resolution: 0.1°C
