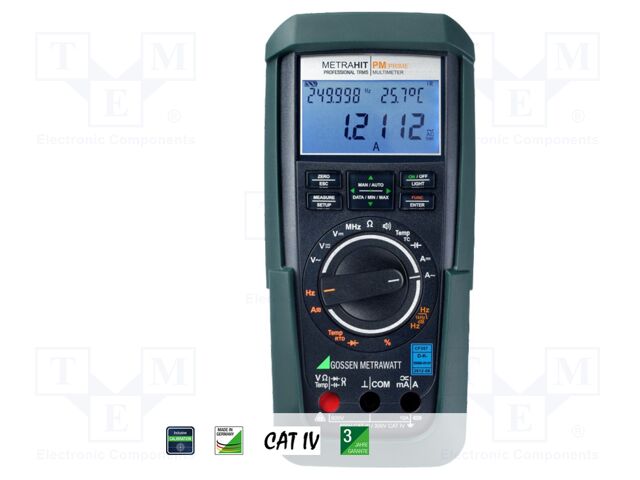

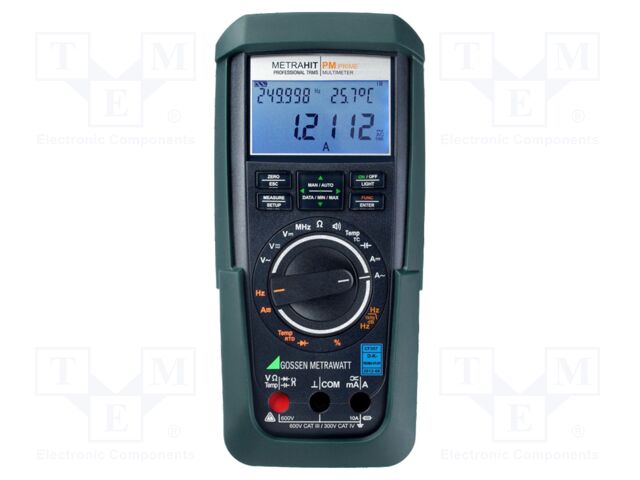

METRAHIT PM PRIME BT GOSSEN METRAWATT
Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth,IR,USB X-TRA; LCD; (60000); IP52
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: (60000)
True effective value measurement: True RMS
DC voltage measuring range: 300mV; 3V; 30V; 300V; 600V
DC voltage measuring accuracy: ±(0.02% + 5 digit)
AC voltage measuring range: 300mV; 3V; 30V; 300V; 600V
AC voltage measuring accuracy: ±(0.2% + 30 digit)
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
DC current measuring accuracy: ±(0.3% + 5 digit)
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
AC current measuring accuracy: ±(0.5% + 30 digit)
Resistance measuring range: 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Resistance measuring accuracy: ±(0.06%+5 digit)
Capacitance measuring range: 3nF; 30nF; 300nF; 3µF; 30µF; 300µF; 3mF
Capacitance measuring accuracy: ±(1%+ 6 digit)
Frequency measuring range: 300Hz; 3kHz; 30kHz; 300kHz
Frequency measuring accuracy: ±(0.05%+3 digit)
Temperature measuring range: -250...1372°C
Diode test: 4.5V
Test: diodes
Continuity test: acoustic indication; <300Ω
Measurement: AC current; AC voltage; capacitance; continuity; dB; DC current; DC voltage; frequency; resistance; temperature
Interface: Bluetooth; IR; USB X-TRA
Measuring instrument features: 10A/1000V fuse; HOLD function; MIN/MAX/REL function; zeroing function
Operating temperature: -10...50°C
Standard equipment: calibration certificate DAkkS; holster; test leads KS17-2; user's manual
Dimensions (W x H x D): 200x87x45mm
Temperature measurement resolution: 0.1°C
Temperature measurement accuracy: ±(0.3% + 10°C)
Producer guarantee (months): 36
Weight with battery: 400g
Battery/ rechargeable battery: battery AA 1,5V x2
Power supply: battery AA 1,5V x2
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
IP rating: IP52
Manufacturer series: METRAHIT
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth,IR,USB X-TRA; LCD; (60000); IP52
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: (60000)
True effective value measurement: True RMS
DC voltage measuring range: 300mV; 3V; 30V; 300V; 600V
DC voltage measuring accuracy: ±(0.02% + 5 digit)
AC voltage measuring range: 300mV; 3V; 30V; 300V; 600V
AC voltage measuring accuracy: ±(0.2% + 30 digit)
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
DC current measuring accuracy: ±(0.3% + 5 digit)
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
AC current measuring accuracy: ±(0.5% + 30 digit)
Resistance measuring range: 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Resistance measuring accuracy: ±(0.06%+5 digit)
Capacitance measuring range: 3nF; 30nF; 300nF; 3µF; 30µF; 300µF; 3mF
Capacitance measuring accuracy: ±(1%+ 6 digit)
Frequency measuring range: 300Hz; 3kHz; 30kHz; 300kHz
Frequency measuring accuracy: ±(0.05%+3 digit)
Temperature measuring range: -250...1372°C
Diode test: 4.5V
Test: diodes
Continuity test: acoustic indication; <300Ω
Measurement: AC current; AC voltage; capacitance; continuity; dB; DC current; DC voltage; frequency; resistance; temperature
Interface: Bluetooth; IR; USB X-TRA
Measuring instrument features: 10A/1000V fuse; HOLD function; MIN/MAX/REL function; zeroing function
Operating temperature: -10...50°C
Standard equipment: calibration certificate DAkkS; holster; test leads KS17-2; user's manual
Dimensions (W x H x D): 200x87x45mm
Temperature measurement resolution: 0.1°C
Temperature measurement accuracy: ±(0.3% + 10°C)
Producer guarantee (months): 36
Weight with battery: 400g
Battery/ rechargeable battery: battery AA 1,5V x2
Power supply: battery AA 1,5V x2
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
IP rating: IP52
Manufacturer series: METRAHIT
