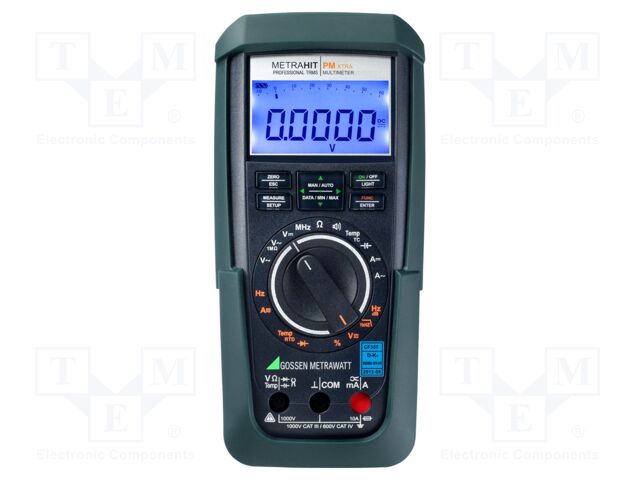

METRAHIT PM XTRA GOSSEN METRAWATT
Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; IR; LCD; 4-6/7 digits (60000); 2x/s; True RMS
Type of meter: digital multimeter
Interface: IR
Measurement: AC current; AC voltage; capacitance; continuity; dB; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: 4-6/7 digits (60000)
Bargraph: yes
Sampling: 2x/s
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0,05% + 5 digits)
AC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(0,5% + 9 digits)
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(0,1% + 5 digits)
AC current measuring accuracy: ±(1% + 10 digits)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Resistance measuring accuracy: ±(0.1% + 5 digits)
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF
Capacitance measuring accuracy: ±(1% + 6 digits)
Frequency measuring range: 15Hz...100kHz
Frequency measuring accuracy: ±(1% + 9 digits)
Temperature measuring range: -250...1372°C
Temperature measurement accuracy: ±(0,3% + 15 digit)
Temperature measurement resolution: 0.1°C
Diode test: 6V
Continuity test: acoustic indication; <600Ω
Operating temperature: -10...50°C
Pollution degree: 2
IP rating: IP52
Weight with battery: 350g
Power supply: battery LR6 AA 1,5V x2
Standard equipment: calibration certificate DAkkS; case; holster; test leads KS17-2; user's manual
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Dimensions (W x H x D): 200x87x45mm
Producer guarantee (months): 36
Measuring instrument features: 10A/1000V fuse; automatic power-off; HOLD function; low-pass filter; MIN/MAX/REL function; operates with thermocouple types: K, Pt100, PT1000; with power pack socket; zeroing function
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Manufacturer series: METRAHIT
Memory capacity: 16Mb
Anzahl je Verpackung: 1 Stücke
Category: Portable digital multimeters
Description: Digital multimeter; IR; LCD; 4-6/7 digits (60000); 2x/s; True RMS
Type of meter: digital multimeter
Interface: IR
Measurement: AC current; AC voltage; capacitance; continuity; dB; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: 4-6/7 digits (60000)
Bargraph: yes
Sampling: 2x/s
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0,05% + 5 digits)
AC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(0,5% + 9 digits)
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(0,1% + 5 digits)
AC current measuring accuracy: ±(1% + 10 digits)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Resistance measuring accuracy: ±(0.1% + 5 digits)
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF
Capacitance measuring accuracy: ±(1% + 6 digits)
Frequency measuring range: 15Hz...100kHz
Frequency measuring accuracy: ±(1% + 9 digits)
Temperature measuring range: -250...1372°C
Temperature measurement accuracy: ±(0,3% + 15 digit)
Temperature measurement resolution: 0.1°C
Diode test: 6V
Continuity test: acoustic indication; <600Ω
Operating temperature: -10...50°C
Pollution degree: 2
IP rating: IP52
Weight with battery: 350g
Power supply: battery LR6 AA 1,5V x2
Standard equipment: calibration certificate DAkkS; case; holster; test leads KS17-2; user's manual
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Dimensions (W x H x D): 200x87x45mm
Producer guarantee (months): 36
Measuring instrument features: 10A/1000V fuse; automatic power-off; HOLD function; low-pass filter; MIN/MAX/REL function; operates with thermocouple types: K, Pt100, PT1000; with power pack socket; zeroing function
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Manufacturer series: METRAHIT
Memory capacity: 16Mb
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
