Produkte > GOSSEN METRAWATT > METRALINE DM41

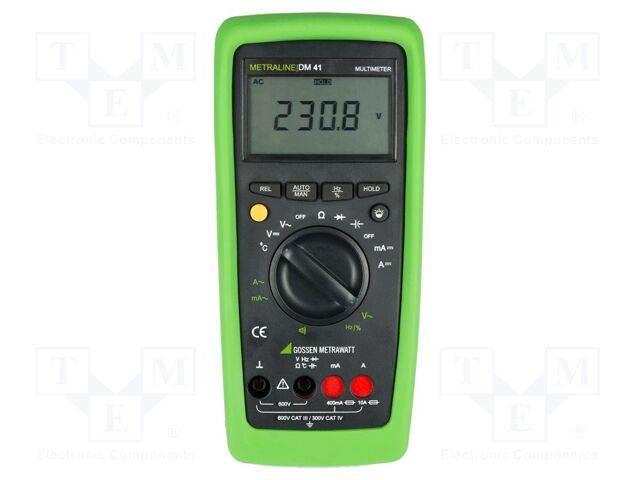

METRALINE DM41
  • METRALINE DM41
  • METRALINE DM41
  • METRALINE DM41

METRALINE DM41 GOSSEN METRAWATT

pVersion=0046&contRep=ZT&docId=005056AB90B41EDB9F9942D4437C40C7&compId=METRALINE%20DM41.pdf?ci_sign=4fd9781d1a5bb86234a703d1ef838c090a3cbead Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 3,75 digit (3999); 3x/s; Resol: 1°C; IP50
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: 3,75 digit (3999)
DC voltage measuring range: 400mV; 4V; 40V; 400V; 600V
DC voltage measuring accuracy: ±(0.5% + 2 digit)
AC voltage measuring range: 400mV; 4V; 40V; 400V; 600V
AC voltage measuring accuracy: ±(1% + 5 digit)
DC current measuring range: 40mA; 400mA; 10A
DC current measuring accuracy: ±(0.8% + 2 digit)
AC current measuring range: 40mA; 400mA; 10A
AC current measuring accuracy: ±(1% + 5 digit)
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Capacitance measuring range: 5nF; 50nF; 500nF; 5µF; 50µF; 200µF
Capacitance measuring accuracy: ±(0.5%+ 3 digit)
Frequency measuring range: 10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 500kHz
Frequency measuring accuracy: ±(0.2%+2 digit)
Temperature measuring range: -50...1300°C
Resistance measuring accuracy: ±(0.8%+2 digit)
Test: diodes
Continuity test: acoustic indication; <400Ω
Power supply: battery LR6 AA 1,5V x2
Standard equipment: holster; test leads
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
Dimensions (W x H x D): 86x188x53mm
Measuring instrument features: auto and manual ranging; HOLD function; REL function
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Operating temperature: 0...50°C
Temperature measurement resolution: 1°C
Temperature measurement accuracy: ±(2% + 3 digit)
Pollution degree: 2
Producer guarantee (months): 36
Weight with battery: 480g
Sampling: 3x/s
IP rating: IP50
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+119.06 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details METRALINE DM41 GOSSEN METRAWATT

Category: Portable digital multimeters, Description: Digital multimeter; LCD; 3,75 digit (3999); 3x/s; Resol: 1°C; IP50, Type of meter: digital multimeter, Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature, Kind of display used: LCD, Display parameters: 3,75 digit (3999), DC voltage measuring range: 400mV; 4V; 40V; 400V; 600V, DC voltage measuring accuracy: ±(0.5% + 2 digit), AC voltage measuring range: 400mV; 4V; 40V; 400V; 600V, AC voltage measuring accuracy: ±(1% + 5 digit), DC current measuring range: 40mA; 400mA; 10A, DC current measuring accuracy: ±(0.8% + 2 digit), AC current measuring range: 40mA; 400mA; 10A, AC current measuring accuracy: ±(1% + 5 digit), Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ, Capacitance measuring range: 5nF; 50nF; 500nF; 5µF; 50µF; 200µF, Capacitance measuring accuracy: ±(0.5%+ 3 digit), Frequency measuring range: 10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 500kHz, Frequency measuring accuracy: ±(0.2%+2 digit), Temperature measuring range: -50...1300°C, Resistance measuring accuracy: ±(0.8%+2 digit), Test: diodes, Continuity test: acoustic indication; .
