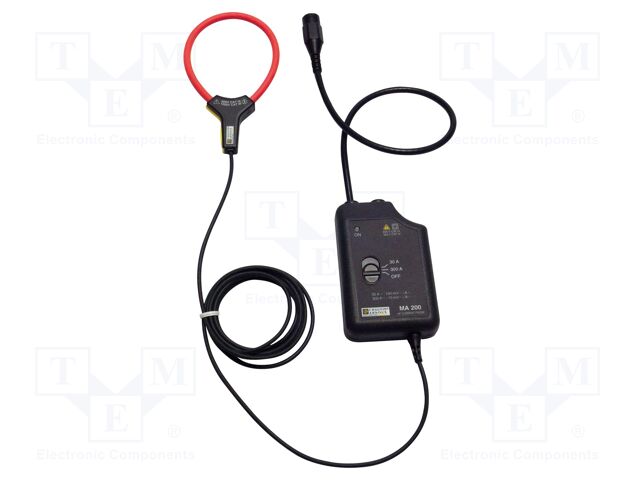

MINIFLEX MA200 HF 30-300A/3V 17 CHAUVIN ARNOUX

Hersteller: CHAUVIN ARNOUX
Category: Meters and AC Clamp Probes
Description: AC current clamp adapter; Øcable: 45mm; Probe l: 170mm; IP50; BNC
Type of test accessories: AC current clamp adapter
Max. diameter of measured cable: 45mm
AC current measuring range: 500mA...30A; 500mA...300A
Probe length: 170mm
Connection: BNC
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
IP rating: IP50
Measurement: AC current
Power supply: battery 6LR61 9V x1
Output signal: 10mV/1A; 100mV/1A

Produkt ist nicht verfügbar

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details MINIFLEX MA200 HF 30-300A/3V 17 CHAUVIN ARNOUX

Category: Meters and AC Clamp Probes, Description: AC current clamp adapter; Øcable: 45mm; Probe l: 170mm; IP50; BNC, Type of test accessories: AC current clamp adapter, Max. diameter of measured cable: 45mm, AC current measuring range: 500mA...30A; 500mA...300A, Probe length: 170mm, Connection: BNC, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010, IP rating: IP50, Measurement: AC current, Power supply: battery 6LR61 9V x1, Output signal: 10mV/1A; 100mV/1A.
