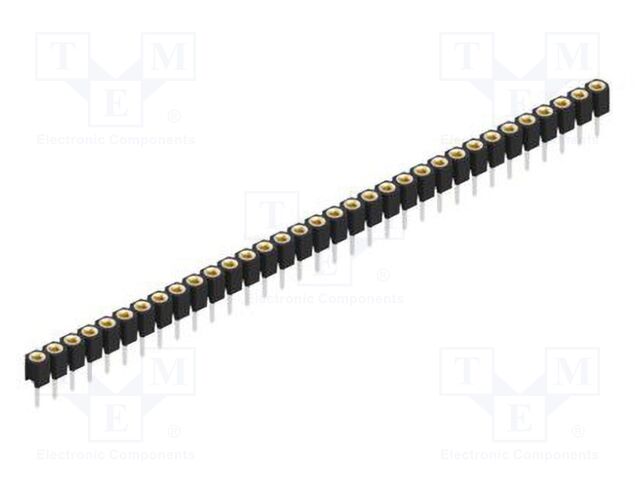

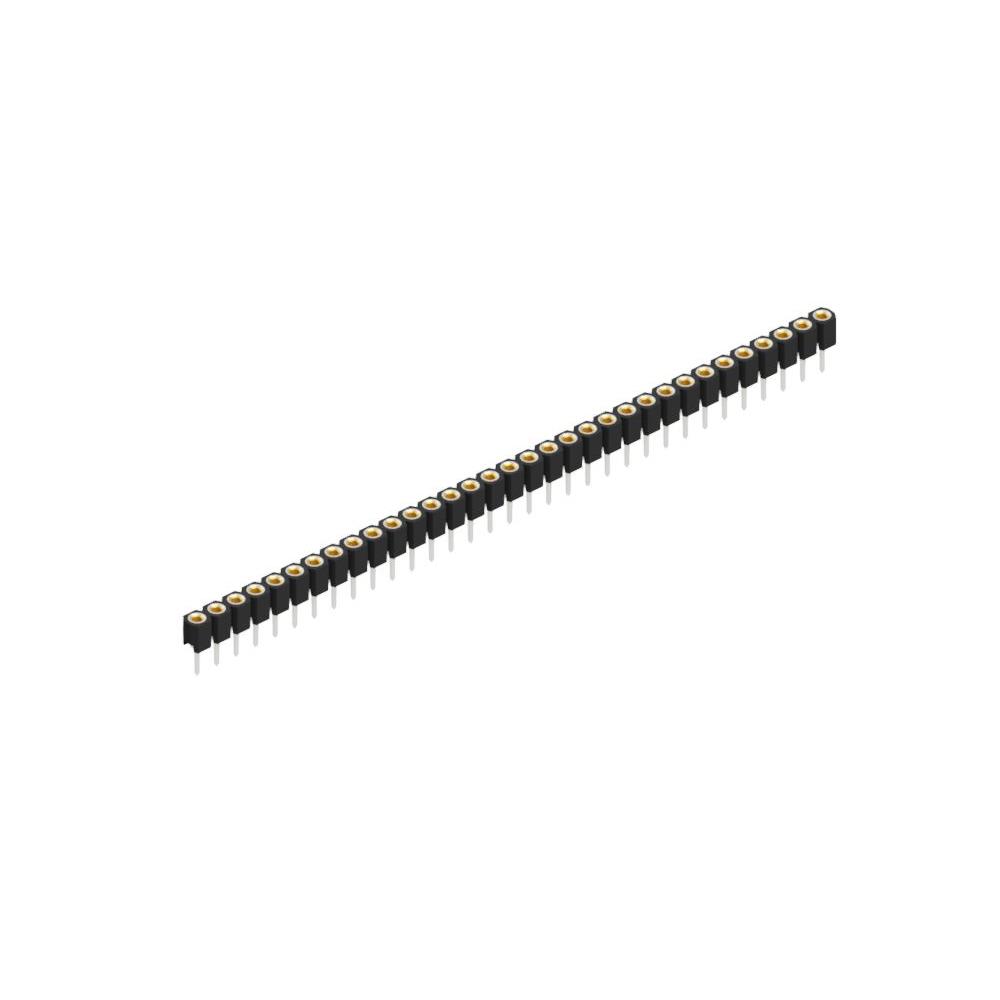

MK 21 33 Fischer Elektronik
Hersteller: Fischer ElektronikDescription: 0.635 mm and up to 0.85 mm
Packaging: Bulk
Connector Type: Header
Voltage Rating: 150VDC
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 33
Operating Temperature: -40°C ~ 163°C
Contact Type: Precision
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.126" (3.20mm)
Insulation Height: 0.130" (3.30mm)
Number of Rows: 1
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 10+ | 9.18 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MK 21 33 Fischer Elektronik
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 33; THT; 3A; 150V; MK 21, Type of connector: pin strips, Connector: socket, Kind of connector: female, Number of pins: 33, Electrical mounting: THT, Current rating: 3A, Rated voltage: 150V, Manufacturer series: MK 21, Spatial orientation: straight, Contacts pitch: 2.54mm, Connector pinout layout: 1x33, Contact plating: gold-plated, Connector variant: precision; turned contacts, Lead length: 3.2mm, Flammability rating: UL94V-0, Height: 3.8mm, Plating thickness: 0.75µm, Contact material: beryllium copper, Overall length: 7mm, Operating temperature: -40...163°C.
Weitere Produktangebote MK 21 33
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
MK2133 | Hersteller : FISCHER ELEKTRONIK |
Category: Pin headers Description: Connector: pin strips; socket; female; PIN: 33; THT; 3A; 150V; MK 21 Type of connector: pin strips Connector: socket Kind of connector: female Number of pins: 33 Electrical mounting: THT Current rating: 3A Rated voltage: 150V Manufacturer series: MK 21 Spatial orientation: straight Contacts pitch: 2.54mm Connector pinout layout: 1x33 Contact plating: gold-plated Connector variant: precision; turned contacts Lead length: 3.2mm Flammability rating: UL94V-0 Height: 3.8mm Plating thickness: 0.75µm Contact material: beryllium copper Overall length: 7mm Operating temperature: -40...163°C |
Produkt ist nicht verfügbar |
