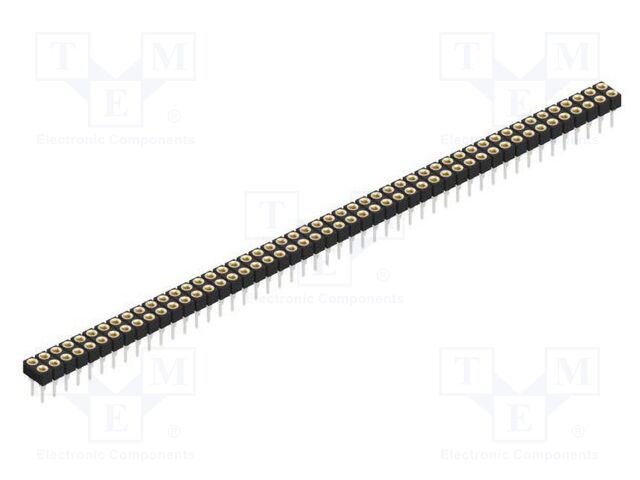

MK 221 98 Fischer Elektronik
Hersteller: Fischer ElektronikDescription: 0.635 mm and up to 0.85 mm
Packaging: Bulk
Connector Type: Header
Voltage Rating: 150VDC
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 98
Operating Temperature: -40°C ~ 163°C
Contact Type: Precision
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.126" (3.20mm)
Insulation Height: 0.098" (2.50mm)
Row Spacing - Mating: 0.100" (2.54mm)
Number of Rows: 2
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 10+ | 27.24 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MK 221 98 Fischer Elektronik
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 98; THT; 3A; 150V; MK 221, Type of connector: pin strips, Connector: socket, Kind of connector: female, Number of pins: 98, Electrical mounting: THT, Current rating: 3A, Rated voltage: 150V, Manufacturer series: MK 221, Spatial orientation: straight, Contacts pitch: 2.54mm, Connector pinout layout: 2x49, Contact plating: gold-plated, Connector variant: precision; turned contacts, Lead length: 3.2mm, Row pitch: 2.54mm, Flammability rating: UL94V-0, Height: 3.8mm, Plating thickness: 0.75µm, Contact material: beryllium copper, Overall length: 7mm, Operating temperature: -40...163°C.
