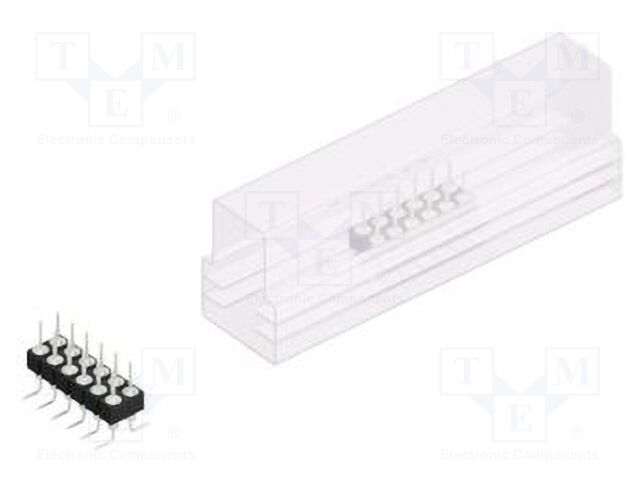

MK 226 SMD 12 Z SM Fischer Elektronik
Hersteller: Fischer ElektronikDescription: Turned precision contacts;
Connector Type: Header
Voltage Rating: 60VDC
Current Rating (Amps): 1.5A
Mounting Type: Surface Mount
Number of Positions: 12
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 163°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Zinc
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 157.5 ~ 236.2µin (4.00 ~ 6.00µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Insulation Height: 0.098" (2.50mm)
Shrouding: Unshrouded
Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.165" (4.20mm)
auf Bestellung 1000 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 10+ | 2.07 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MK 226 SMD 12 Z SM Fischer Elektronik
Category: Pin headers, Description: Connector: pin strips; pin header; male; PIN: 12; SMT; 1.5A; 60V, Manufacturer series: MK 226 SMD, Connector: pin header, Type of connector: pin strips, Body material: polyamide 46, Contact plating: tinned, Electrical mounting: SMT, Flammability rating: UL94V-0, Kind of package: tube, Operating temperature: -40...163°C, Contact material: brass, Contacts pitch: 2.54mm, Overall length: 10mm, Body colour: black, Spatial orientation: angled, Current rating: 1.5A, Number of pins: 12, Rated voltage: 60V, Connector pinout layout: 2x6, Kind of connector: male.
Weitere Produktangebote MK 226 SMD 12 Z SM
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
MK226SMD12ZSM | Hersteller : FISCHER ELEKTRONIK |
Category: Pin headers Description: Connector: pin strips; pin header; male; PIN: 12; SMT; 1.5A; 60V Manufacturer series: MK 226 SMD Connector: pin header Type of connector: pin strips Body material: polyamide 46 Contact plating: tinned Electrical mounting: SMT Flammability rating: UL94V-0 Kind of package: tube Operating temperature: -40...163°C Contact material: brass Contacts pitch: 2.54mm Overall length: 10mm Body colour: black Spatial orientation: angled Current rating: 1.5A Number of pins: 12 Rated voltage: 60V Connector pinout layout: 2x6 Kind of connector: male |
