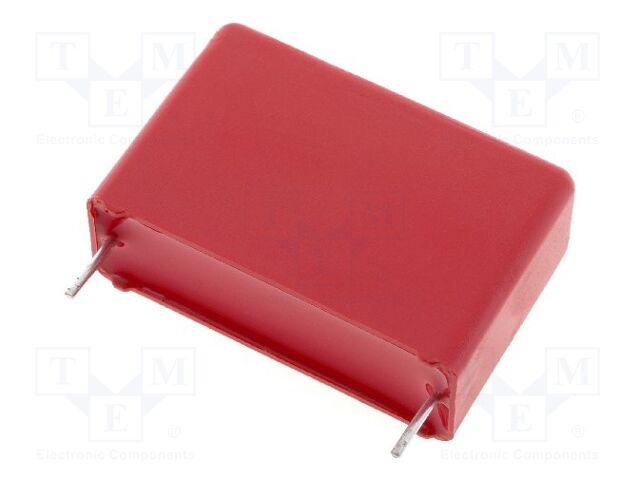

MKP1V013305B00KSSD WIMA

Category: THT Film Capacitors, Description: Capacitor: polypropylene; low ESR; 3.3nF; 2.5kVDC; 900VAC; THT, Type of capacitor: polypropylene, Kind of capacitor: low ESR, Capacitance: 3.3nF, Max. operating voltage: 900V AC; 2.5kV DC, Body dimensions: 6x15x26.5mm, Mounting: THT, Tolerance: ±10%, Terminal pitch: 22.5mm, Capacitors features: low dielectric loss factor, Climate class: 55/100/56, Pulse resistance: 11kV/μs, Capacitor application: high frequency circuits; impulse circuits, Flammability rating: UL94V-0, Kind of material: flame retardant, Operating temperature: -55...100°C, Anzahl je Verpackung: 1000 Stücke.
