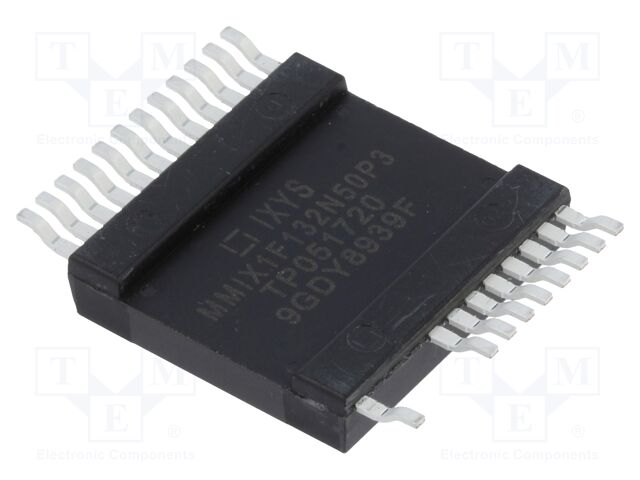

MMIX1F132N50P3 IXYS
Hersteller: IXYSCategory: SMD N channel transistors
Description: Transistor: N-MOSFET; Polar3™; unipolar; 500V; 63A; Idm: 330A; 520W
Type of transistor: N-MOSFET
Polarisation: unipolar
Power dissipation: 520W
Case: SMPD
Mounting: SMD
On-state resistance: 43mΩ
Gate charge: 267nC
Technology: HiPerFET™; Polar3™
Kind of channel: enhancement
Gate-source voltage: ±30V
Pulsed drain current: 330A
Reverse recovery time: 250ns
Drain-source voltage: 500V
Drain current: 63A
Anzahl je Verpackung: 1 Stücke
auf Bestellung 20 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 48.18 EUR |
| 10+ | 46.33 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MMIX1F132N50P3 IXYS
Description: MOSFET N-CH 500V 63A 24SMPD, Packaging: Tube, Package / Case: 24-PowerSMD, 21 Leads, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 63A (Tc), Rds On (Max) @ Id, Vgs: 43mOhm @ 66A, 10V, Power Dissipation (Max): 520W (Tc), Vgs(th) (Max) @ Id: 5V @ 8mA, Supplier Device Package: 24-SMPD, Part Status: Active, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±30V, Drain to Source Voltage (Vdss): 500 V, Gate Charge (Qg) (Max) @ Vgs: 250 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 18600 pF @ 25 V.
Weitere Produktangebote MMIX1F132N50P3 nach Preis ab 46.33 EUR bis 57.92 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
+1 |
MMIX1F132N50P3 | Hersteller : IXYS |
Category: SMD N channel transistors Description: Transistor: N-MOSFET; Polar3™; unipolar; 500V; 63A; Idm: 330A; 520W Type of transistor: N-MOSFET Polarisation: unipolar Power dissipation: 520W Case: SMPD Mounting: SMD On-state resistance: 43mΩ Gate charge: 267nC Technology: HiPerFET™; Polar3™ Kind of channel: enhancement Gate-source voltage: ±30V Pulsed drain current: 330A Reverse recovery time: 250ns Drain-source voltage: 500V Drain current: 63A |
auf Bestellung 20 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||
 |
MMIX1F132N50P3 | Hersteller : IXYS |
Description: MOSFET N-CH 500V 63A 24SMPD Packaging: Tube Package / Case: 24-PowerSMD, 21 Leads Mounting Type: Surface Mount Operating Temperature: -55°C ~ 150°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: N-Channel Current - Continuous Drain (Id) @ 25°C: 63A (Tc) Rds On (Max) @ Id, Vgs: 43mOhm @ 66A, 10V Power Dissipation (Max): 520W (Tc) Vgs(th) (Max) @ Id: 5V @ 8mA Supplier Device Package: 24-SMPD Part Status: Active Drive Voltage (Max Rds On, Min Rds On): 10V Vgs (Max): ±30V Drain to Source Voltage (Vdss): 500 V Gate Charge (Qg) (Max) @ Vgs: 250 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 18600 pF @ 25 V |
auf Bestellung 860 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||
 |
MMIX1F132N50P3 | Hersteller : IXYS |
MOSFETs Polar3 HiPerFET Power MOSFET |
Produkt ist nicht verfügbar |
