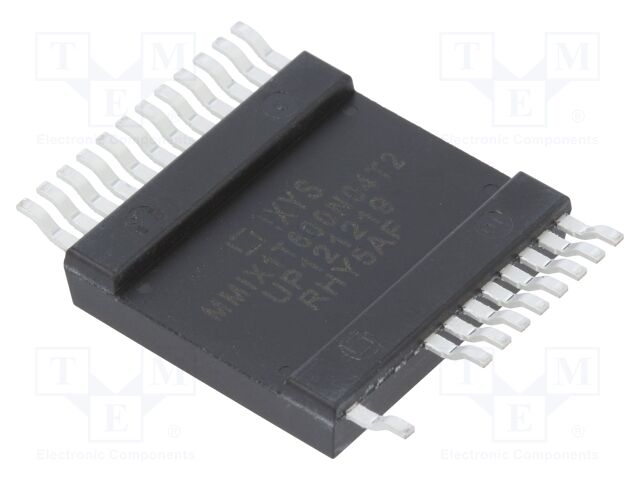

MMIX1T600N04T2 IXYS
Hersteller: IXYS
Category: SMD N channel transistors
Description: Transistor: N-MOSFET; GigaMOS™; unipolar; 40V; 600A; Idm: 2kA; 830W
Mounting: SMD
Power dissipation: 830W
Polarisation: unipolar
Type of transistor: N-MOSFET
On-state resistance: 1.3mΩ
Drain current: 600A
Drain-source voltage: 40V
Gate charge: 590nC
Technology: GigaMOS™; TrenchT2™
Kind of channel: enhanced
Reverse recovery time: 100ns
Gate-source voltage: ±20V
Pulsed drain current: 2kA
Case: SMPD
Anzahl je Verpackung: 1 Stücke
Category: SMD N channel transistors
Description: Transistor: N-MOSFET; GigaMOS™; unipolar; 40V; 600A; Idm: 2kA; 830W
Mounting: SMD
Power dissipation: 830W
Polarisation: unipolar
Type of transistor: N-MOSFET
On-state resistance: 1.3mΩ
Drain current: 600A
Drain-source voltage: 40V
Gate charge: 590nC
Technology: GigaMOS™; TrenchT2™
Kind of channel: enhanced
Reverse recovery time: 100ns
Gate-source voltage: ±20V
Pulsed drain current: 2kA
Case: SMPD
Anzahl je Verpackung: 1 Stücke
auf Bestellung 20 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
2+ | 36.32 EUR |
20+ | 35.74 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MMIX1T600N04T2 IXYS
Description: MOSFET N-CH 40V 600A 24SMPD, Packaging: Tube, Package / Case: 24-PowerSMD, 21 Leads, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 175°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 600A (Tc), Rds On (Max) @ Id, Vgs: 1.3mOhm @ 100A, 10V, Power Dissipation (Max): 830W (Tc), Vgs(th) (Max) @ Id: 3.5V @ 250µA, Supplier Device Package: 24-SMPD, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 40 V, Gate Charge (Qg) (Max) @ Vgs: 590 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 40000 pF @ 25 V.
Weitere Produktangebote MMIX1T600N04T2 nach Preis ab 35.74 EUR bis 61.64 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
+1 |
MMIX1T600N04T2 | Hersteller : IXYS |
Category: SMD N channel transistors Description: Transistor: N-MOSFET; GigaMOS™; unipolar; 40V; 600A; Idm: 2kA; 830W Mounting: SMD Power dissipation: 830W Polarisation: unipolar Type of transistor: N-MOSFET On-state resistance: 1.3mΩ Drain current: 600A Drain-source voltage: 40V Gate charge: 590nC Technology: GigaMOS™; TrenchT2™ Kind of channel: enhanced Reverse recovery time: 100ns Gate-source voltage: ±20V Pulsed drain current: 2kA Case: SMPD |
auf Bestellung 20 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||
MMIX1T600N04T2 | Hersteller : IXYS |
Description: MOSFET N-CH 40V 600A 24SMPD Packaging: Tube Package / Case: 24-PowerSMD, 21 Leads Mounting Type: Surface Mount Operating Temperature: -55°C ~ 175°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: N-Channel Current - Continuous Drain (Id) @ 25°C: 600A (Tc) Rds On (Max) @ Id, Vgs: 1.3mOhm @ 100A, 10V Power Dissipation (Max): 830W (Tc) Vgs(th) (Max) @ Id: 3.5V @ 250µA Supplier Device Package: 24-SMPD Drive Voltage (Max Rds On, Min Rds On): 10V Vgs (Max): ±20V Drain to Source Voltage (Vdss): 40 V Gate Charge (Qg) (Max) @ Vgs: 590 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 40000 pF @ 25 V |
auf Bestellung 20 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||
MMIX1T600N04T2 | Hersteller : IXYS | MOSFET 40V 600A |
auf Bestellung 12 Stücke: Lieferzeit 10-14 Tag (e) |
