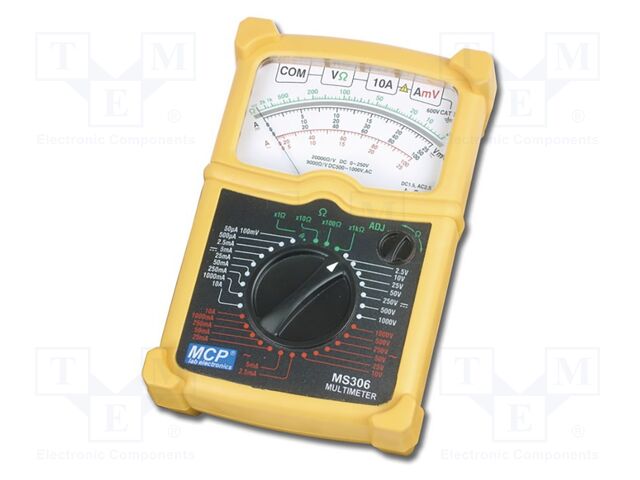

MS306 MCP

Category: Analog Multimeters, Description: Analogue multimeter; analogue; VDC accuracy: ±1.5%; 170x165x55mm, Dimensions: 170x165x55mm, Related items: MS30X/FUSE-1A; MS30X/FUSE-10A, Power supply: battery AA 1,5V x3, Kind of display used: analogue, Standard equipment: test leads ( 2pcs.), DC current measuring range: 50µA; 0.5mA; 2.5mA; 5mA; 25mA; 50mA; 250mA; 1A; 10A, AC current measuring range: 2.5mA; 5mA; 25mA; 50mA; 250mA; 1A; 10A, Measurement: AC current; AC voltage; continuity; DC current; DC voltage; resistance, DC voltage measuring range: 100mV; 2.5V; 10V; 25V; 50V; 250V; 500V; 1kV, Resistance measuring range: 1Ω; 10Ω; 100Ω; 1kΩ, DC current measuring accuracy: ±1.5%, DC voltage measuring accuracy: ±1.5%, AC current measuring accuracy: ±2.5%, AC voltage measuring accuracy: ±2.5%, Type of meter: analogue multimeter, AC voltage measuring range: 10V; 25V; 50V; 250V; 500V; 1kV, Resistance measuring accuracy: ±10%, Operating frequency: 20...400Hz, Conform to the norm: CAT III 600V; EN 61010, Continuity test: acoustic indication; .
