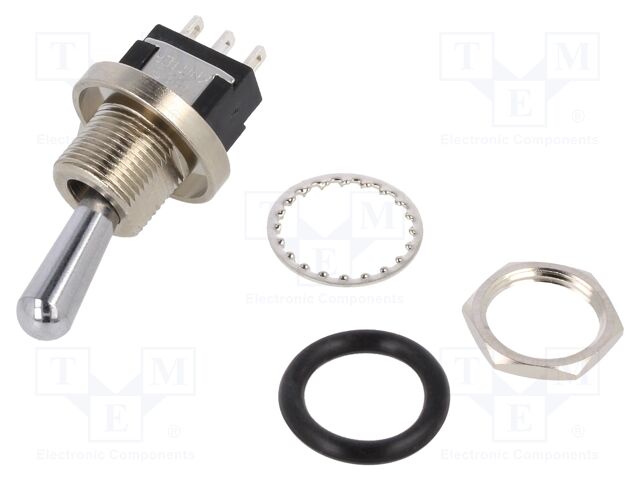

MTW 106 D KNITTER-SWITCH
Hersteller: KNITTER-SWITCHCategory: Toggle Switches
Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 6A/125VAC; 6A/6VDC; MTW; 20mΩ
Type of switch: toggle
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPDT
Switching method: ON-ON
AC contacts rating @R: 6A / 125V AC
DC contacts rating @R: 6A / 6V DC
Leads: flat pin
Operating temperature: -45...140°C
Body dimensions: 9.2x13x7.8mm
Mechanical durability: 100000 cycles
IP rating: IP67
Illumination: none
Mounting: screw
Contact plating: silver plated
Terminal pitch: 4.3mm
Mounting hole diameter: Ø12.5mm
Max. contact resistance:: 20mΩ
Body material: plastic
Manufacturer series: MTW
Body colour: black
Anzahl je Verpackung: 1 Stücke
auf Bestellung 122 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 4+ | 22.95 EUR |
| 7+ | 10.5 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MTW 106 D KNITTER-SWITCH
Category: Toggle Switches, Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 6A/125VAC; 6A/6VDC; MTW; 20mΩ, Type of switch: toggle, Number of positions: 2, Stable positions number: 2, Contacts configuration: SPDT, Switching method: ON-ON, AC contacts rating @R: 6A / 125V AC, DC contacts rating @R: 6A / 6V DC, Leads: flat pin, Operating temperature: -45...140°C, Body dimensions: 9.2x13x7.8mm, Mechanical durability: 100000 cycles, IP rating: IP67, Illumination: none, Mounting: screw, Contact plating: silver plated, Terminal pitch: 4.3mm, Mounting hole diameter: Ø12.5mm, Max. contact resistance:: 20mΩ, Body material: plastic, Manufacturer series: MTW, Body colour: black, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote MTW 106 D nach Preis ab 10.5 EUR bis 25.52 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MTW 106 D | Hersteller : KNITTER-SWITCH |
Category: Toggle Switches Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 6A/125VAC; 6A/6VDC; MTW; 20mΩ Type of switch: toggle Number of positions: 2 Stable positions number: 2 Contacts configuration: SPDT Switching method: ON-ON AC contacts rating @R: 6A / 125V AC DC contacts rating @R: 6A / 6V DC Leads: flat pin Operating temperature: -45...140°C Body dimensions: 9.2x13x7.8mm Mechanical durability: 100000 cycles IP rating: IP67 Illumination: none Mounting: screw Contact plating: silver plated Terminal pitch: 4.3mm Mounting hole diameter: Ø12.5mm Max. contact resistance:: 20mΩ Body material: plastic Manufacturer series: MTW Body colour: black |
auf Bestellung 122 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
MTW 106 D | Hersteller : Knitter-Switch |
Description: SWITCH TOGGLE 1-POLE ON - ON Packaging: Box Current Rating (Amps): 6A (AC), 4A (DC) Mounting Type: Panel Mount Circuit: SPDT Switch Function: On-On Operating Temperature: -45°C ~ 140°C Termination Style: Solder Lug Illumination: Non-Illuminated Bushing Thread: 15/32-32 Actuator Length: 17.00mm Actuator Type: Standard Round Ingress Protection: IP67 - Dust Tight, Waterproof Panel Cutout Dimensions: Circular - 12.50mm Dia Voltage Rating - AC: 125 V Voltage Rating - DC: 30 V |
auf Bestellung 486 Stücke: Lieferzeit 10-14 Tag (e) |
|
