MX77A016HF1

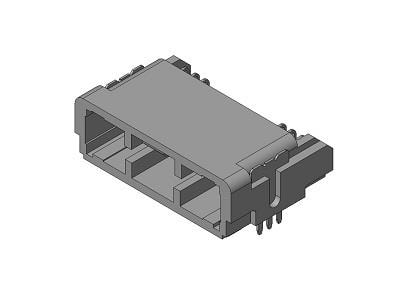

MX77A016HF1 JAE Electronics

?file_nm=MX77A016HF1.pdf&orientation=portrait&no_cache=0&path=%2Fen%2Fconnectors%2Fseries%2Fdetail%2Fproduct%2Fid%3D93475%26v=2021052010521147606309 Hersteller: JAE Electronics
Description: CONN PIN HDR 16 POS R/A SMT
Features: Solder Retention
Packaging: Tray
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Surface Mount, Right Angle
Number of Positions: 16
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.382" (9.70mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.116" (2.95mm)
Contact Length - Mating: 0.240" (6.10mm)
auf Bestellung 1222 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+13.75 EUR
10+ 12.42 EUR
25+ 11.73 EUR
56+ 11.45 EUR
112+ 10.88 EUR
280+ 9.73 EUR
448+ 9.16 EUR
952+ 8.01 EUR
Mindestbestellmenge: 2
Produktrezensionen
Produktbewertung abgeben

Technische Details MX77A016HF1 JAE Electronics

Description: CONN PIN HDR 16 POS R/A SMT, Features: Solder Retention, Packaging: Tray, Connector Type: Header, Current Rating (Amps): 3A, Mounting Type: Surface Mount, Right Angle, Number of Positions: 16, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.382" (9.70mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled, Row Spacing - Mating: 0.116" (2.95mm), Contact Length - Mating: 0.240" (6.10mm).
