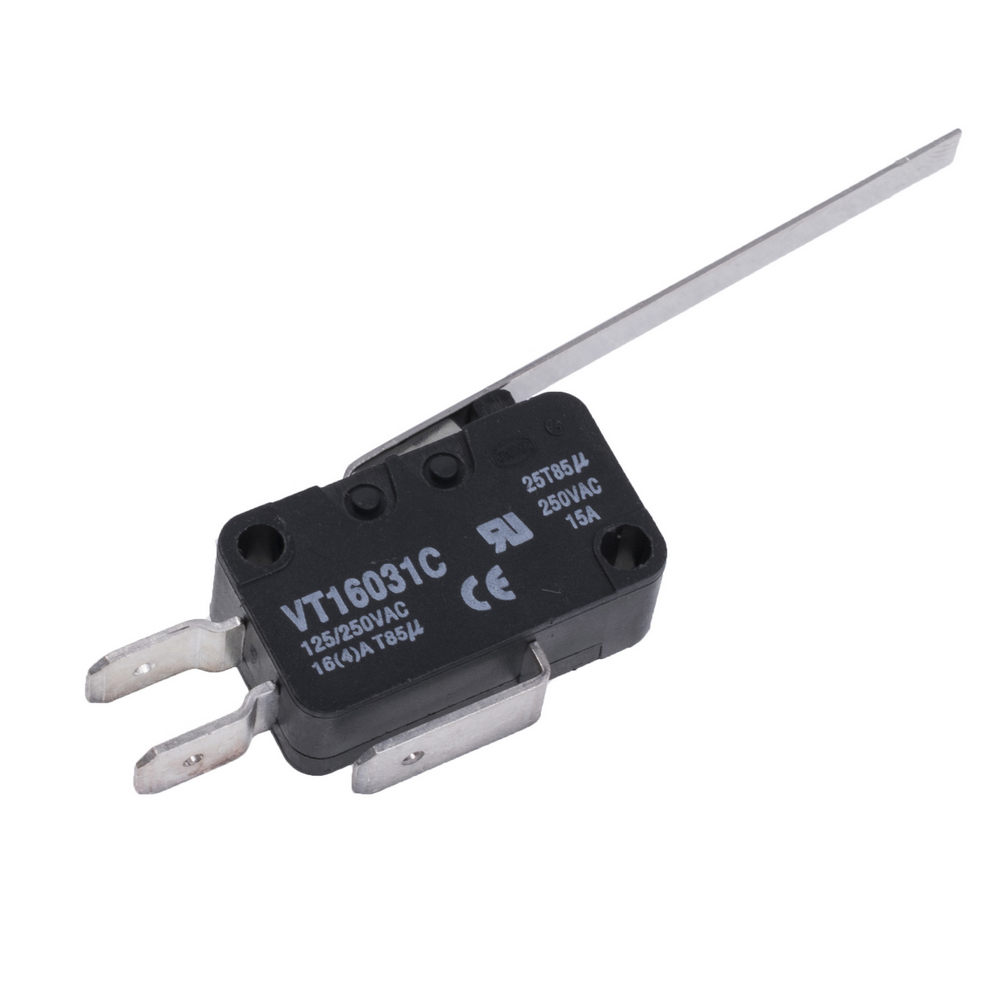

VT16031C HIGHLY ELECTRIC

Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 14A/250VAC; with lever; SPDT; ON-(ON), Type of switch: microswitch SNAP ACTION, AC contacts rating @R: 14A / 250V AC, Switches features: with lever, Contacts configuration: SPDT, Max. contact resistance:: 15mΩ, Switching method: ON-(ON), Number of positions: 2, Stable positions number: 1, Leads: connectors, Body dimensions: 27.8x10.3x18.8mm, Operating temperature: -25...70°C, Operating Force: 2.5N, Lever length: 54mm, Electrical life: 100000 cycles, Min. insulation resistance: 0.1GΩ, Leads dimensions: 6.3x0.8mm, Conform to the norm: IEC 1058-1.
