Produkte > LUMEL > N32U 230000000M0

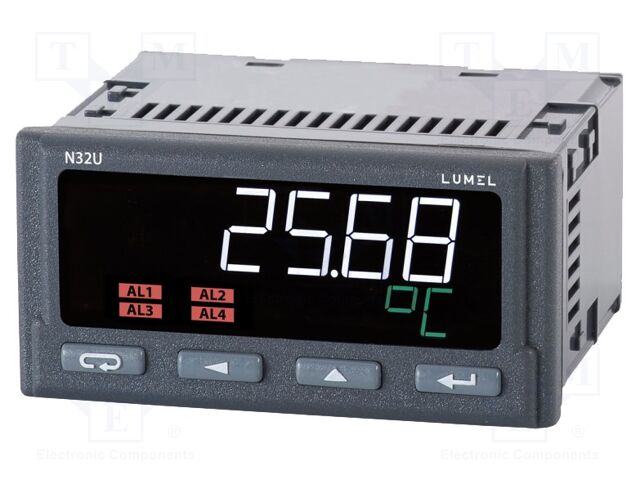

N32U 230000000M0

N32U 230000000M0 LUMEL


pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA9E638844B2B60C7&compId=N32U_data.pdf?ci_sign=281b43ebdbe6216febc0941cd1c1d924808f33f7 pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA9E637D5CED400C7&compId=N32U_manual.pdf?ci_sign=36cf3542974cd629668f1b6341356981e5749d41 Hersteller: LUMEL
Category: Digital Panel Meters - Others
Description: Meter: multifunction; digital,mounting; LCD; 5 digits,6 digits
Type of meter: multifunction
Measurement: DC current; DC voltage; resistance; temperature
Kind of meter: digital; mounting
Kind of measurement: indirect with shunt
Mounting: for DIN rail mounting (optional); on panel
Kind of display used: LCD
Display parameters: 5 digits; 6 digits
Output: analogue; OC type output; relay x4
Input: 0...400Ω; 0...4000Ω; current 4...20mA; current -20...20mA; current time (00,00...23,59); E-type thermocouple (-100...1000°C); J-type thermocouple (-100...1200°C); K-type thermocouple (-100...1370°C); N-type thermocouple (-100...1300°C); Pt100-type thermocouple (-200...580°C); Pt1000-type thermocouple (-200...580°C); R-type thermocouple (-50...1760°C); S-type thermocouple (-50...1760°C); voltage 0...60mV; voltage ±150mV; voltage ±300mV
Interface: RS485
Communictions protocol: Modbus RTU
Supply voltage: 20...40V AC; 20...60V DC
Measuring instrument features: MIN/MAX/AVG function
IP rating: IP65 (from the front)
Dimensions (W x H x D): 96x48x93mm
Related items: ATS-200
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+430.00 EUR
3+413.47 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details N32U 230000000M0 LUMEL

Category: Digital Panel Meters - Others, Description: Meter: multifunction; digital,mounting; LCD; 5 digits,6 digits, Type of meter: multifunction, Measurement: DC current; DC voltage; resistance; temperature, Kind of meter: digital; mounting, Kind of measurement: indirect with shunt, Mounting: for DIN rail mounting (optional); on panel, Kind of display used: LCD, Display parameters: 5 digits; 6 digits, Output: analogue; OC type output; relay x4, Input: 0...400Ω; 0...4000Ω; current 4...20mA; current -20...20mA; current time (00,00...23,59); E-type thermocouple (-100...1000°C); J-type thermocouple (-100...1200°C); K-type thermocouple (-100...1370°C); N-type thermocouple (-100...1300°C); Pt100-type thermocouple (-200...580°C); Pt1000-type thermocouple (-200...580°C); R-type thermocouple (-50...1760°C); S-type thermocouple (-50...1760°C); voltage 0...60mV; voltage ±150mV; voltage ±300mV, Interface: RS485, Communictions protocol: Modbus RTU, Supply voltage: 20...40V AC; 20...60V DC, Measuring instrument features: MIN/MAX/AVG function, IP rating: IP65 (from the front), Dimensions (W x H x D): 96x48x93mm, Related items: ATS-200, Anzahl je Verpackung: 1 Stücke.
