Produkte > PIZZATO ELETTRICA > NA B112KF-DN2
NA B112KF-DN2

NA B112KF-DN2 PIZZATO ELETTRICA


pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8BDFA224C49B64143&compId=PIZZATO-NA-EN.pdf?ci_sign=7bc0455335d6709b529171414207227f6a1d7110 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8BDFA224C49B5E143&compId=PIZZATO-NA-DE.pdf?ci_sign=bef5d998250025282038f50ac1f61bca4396a2fc Hersteller: PIZZATO ELETTRICA
Category: Limit Switches

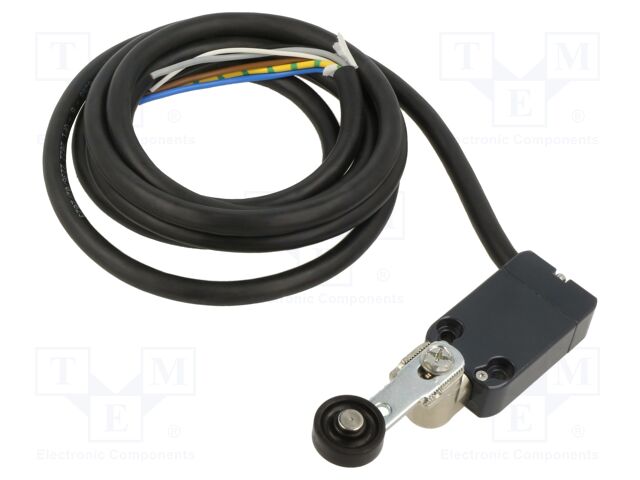

Description: Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; lead; 2m; IP67
Operating temperature: -25...80°C
Number of mounting holes: 2
Mounting holes pitch: 20mm
IP rating: IP67
Body material: metal
Body dimensions: 39x30x16mm
AC contacts rating @R: 4A / 250V AC
DC contacts rating @R: 0.3A / 250V DC
Switches features: snap action contacts
Switched voltage: max. 250V AC; max. 250V DC
Contact current max.: 10A
Switching frequency max: 1Hz
Output configuration: NO + NC
Connection: lead
Kind of actuator: adjustable lever R 43,6-50,6mm, plastic roller Ø20mm
Lead length: 2m
Type of sensor: limit switch
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details NA B112KF-DN2 PIZZATO ELETTRICA

Category: Limit Switches, Description: Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; lead; 2m; IP67, Operating temperature: -25...80°C, Number of mounting holes: 2, Mounting holes pitch: 20mm, IP rating: IP67, Body material: metal, Body dimensions: 39x30x16mm, AC contacts rating @R: 4A / 250V AC, DC contacts rating @R: 0.3A / 250V DC, Switches features: snap action contacts, Switched voltage: max. 250V AC; max. 250V DC, Contact current max.: 10A, Switching frequency max: 1Hz, Output configuration: NO + NC, Connection: lead, Kind of actuator: adjustable lever R 43,6-50,6mm, plastic roller Ø20mm, Lead length: 2m, Type of sensor: limit switch, Anzahl je Verpackung: 1 Stücke.
