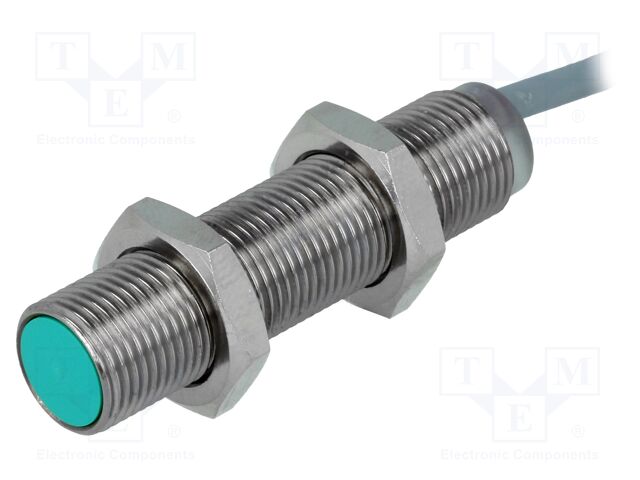

NBB4-12GM50-E0 PEPPERL+FUCHS
Hersteller: PEPPERL+FUCHSCategory: DC Cylindrical Inductive Sensors
Description: Sensor: inductive; OUT: NPN / NO; 0÷4mm; 10÷30VDC; M12; 2m; IP67
Body material: brass
Connection: cables
Kind of forehead: embedded
Type of sensor: inductive
IP rating: IP67
Switch housing: M12
Plating material: nickel
Output configuration: NPN / NO
Operating temperature: -25...70°C
Range: 0...4mm
Lead length: 2m
Thread length: 47mm
Overall length: 50mm
Max. operating current: 200mA
Supply voltage: 10...30V DC
Switching frequency max: 800Hz
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 114.77 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details NBB4-12GM50-E0 PEPPERL+FUCHS
Category: DC Cylindrical Inductive Sensors, Description: Sensor: inductive; OUT: NPN / NO; 0÷4mm; 10÷30VDC; M12; 2m; IP67, Body material: brass, Connection: cables, Kind of forehead: embedded, Type of sensor: inductive, IP rating: IP67, Switch housing: M12, Plating material: nickel, Output configuration: NPN / NO, Operating temperature: -25...70°C, Range: 0...4mm, Lead length: 2m, Thread length: 47mm, Overall length: 50mm, Max. operating current: 200mA, Supply voltage: 10...30V DC, Switching frequency max: 800Hz, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote NBB4-12GM50-E0 nach Preis ab 114.77 EUR bis 135.41 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
NBB4-12GM50-E0 | Hersteller : PEPPERL+FUCHS |
Category: DC Cylindrical Inductive Sensors Description: Sensor: inductive; OUT: NPN / NO; 0÷4mm; 10÷30VDC; M12; 2m; IP67 Body material: brass Connection: cables Kind of forehead: embedded Type of sensor: inductive IP rating: IP67 Switch housing: M12 Plating material: nickel Output configuration: NPN / NO Operating temperature: -25...70°C Range: 0...4mm Lead length: 2m Thread length: 47mm Overall length: 50mm Max. operating current: 200mA Supply voltage: 10...30V DC Switching frequency max: 800Hz |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||
 |
NBB4-12GM50-E0 | Hersteller : Pepperl+Fuchs, Inc. |
Description: INDUCTIVE SEN 4MM NPN Packaging: Box Package / Case: Cylinder, Threaded - M12 Output Type: NPN-NO, 3-Wire Sensing Distance: 0.157" (4mm) Shielding: Unshielded Operating Temperature: -25°C ~ 70°C Termination Style: Cable Voltage - Supply: 10V ~ 30V Material - Body: Nickel-Plated Brass Sensor Type: Inductive Ingress Protection: IP67 Indicator: LED Part Status: Active |
auf Bestellung 459 Stücke: Lieferzeit 10-14 Tag (e) |
|
