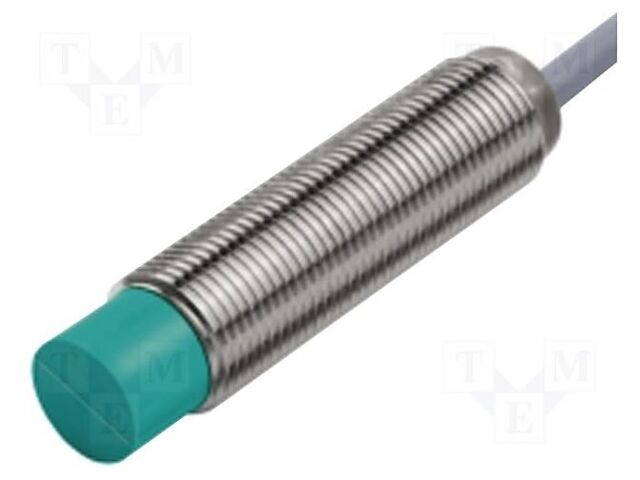

NBN8-12GM50-A2

NBN8-12GM50-A2 PEPPERL+FUCHS


pVersion=0046&contRep=ZT&docId=E1C043F076B369F1A6F5005056AB5A8F&compId=187650.pdf?ci_sign=902ccfa1c0b3195b737043f089d78efbf582ea45 Hersteller: PEPPERL+FUCHS
Category: DC Cylindrical Inductive Sensors
Description: Sensor: inductive; OUT: PNP / NO + NC; 0÷8mm; 10÷30VDC; M12; 2m
Supply voltage: 10...30V DC
Operating temperature: -25...70°C
Thread length: 39mm
Overall length: 50mm
Max. operating current: 200mA
Plating material: nickel
Switching frequency max: 1.5kHz
Switch housing: M12
Range: 0...8mm
Output configuration: PNP / NO + NC
Connection: cables
Kind of forehead: non-embedded
Type of sensor: inductive
Lead length: 2m
IP rating: IP67
Body material: brass
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details NBN8-12GM50-A2 PEPPERL+FUCHS

Category: DC Cylindrical Inductive Sensors, Description: Sensor: inductive; OUT: PNP / NO + NC; 0÷8mm; 10÷30VDC; M12; 2m, Supply voltage: 10...30V DC, Operating temperature: -25...70°C, Thread length: 39mm, Overall length: 50mm, Max. operating current: 200mA, Plating material: nickel, Switching frequency max: 1.5kHz, Switch housing: M12, Range: 0...8mm, Output configuration: PNP / NO + NC, Connection: cables, Kind of forehead: non-embedded, Type of sensor: inductive, Lead length: 2m, IP rating: IP67, Body material: brass, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote NBN8-12GM50-A2

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
NBN8-12GM50-A2 NBN8-12GM50-A2 Hersteller : Pepperl+Fuchs, Inc. 326161-0058_eng.pdf Description: INDUCTIVE DC
Packaging: Box
Package / Case: Cylinder, Threaded - M12
Output Type: PNP, 4-Wire
Sensing Distance: 0.315" (8mm)
Shielding: Unshielded
Operating Temperature: -40°C ~ 85°C
Termination Style: Cable
Voltage - Supply: 5V ~ 36V
Material - Body: Brass
Sensor Type: Inductive
Ingress Protection: IP65, IP66, IP67, IP68
Indicator: LED
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
NBN8-12GM50-A2 NBN8-12GM50-A2 Hersteller : PEPPERL+FUCHS pVersion=0046&contRep=ZT&docId=E1C043F076B369F1A6F5005056AB5A8F&compId=187650.pdf?ci_sign=902ccfa1c0b3195b737043f089d78efbf582ea45 Category: DC Cylindrical Inductive Sensors
Description: Sensor: inductive; OUT: PNP / NO + NC; 0÷8mm; 10÷30VDC; M12; 2m
Supply voltage: 10...30V DC
Operating temperature: -25...70°C
Thread length: 39mm
Overall length: 50mm
Max. operating current: 200mA
Plating material: nickel
Switching frequency max: 1.5kHz
Switch housing: M12
Range: 0...8mm
Output configuration: PNP / NO + NC
Connection: cables
Kind of forehead: non-embedded
Type of sensor: inductive
Lead length: 2m
IP rating: IP67
Body material: brass
