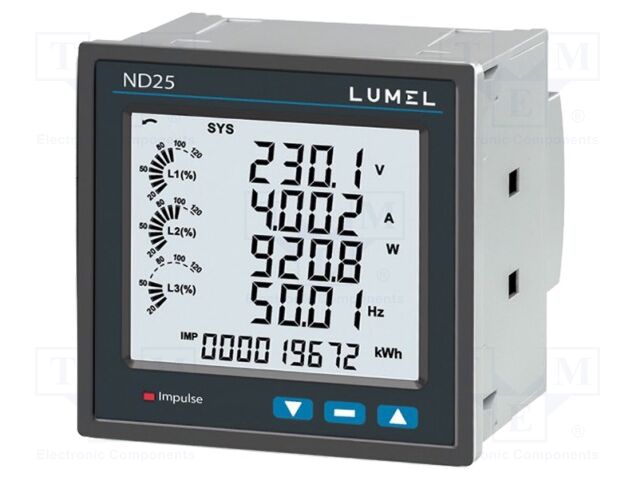

ND25 430102UH200M0 LUMEL

Category: Power Network Meters and Analyzers, Description: Meter: network parameters; digital,mounting; LCD; ND25; 1A,5A, Operating temperature: -20...70°C, Kind of display used: LCD, IP rating: IP50, Supply voltage: 100...550V AC; 100...550V DC, Kind of network: 3-wire; 4-wire; three-phase, Interface: Ethernet; RS485; USB, Input current: 1A; 5A, Input voltage: 57.5...346.42V, Illumination: yes, Operating frequency: 45...65Hz, Related items: ATS-100, Measuring instrument features: datalogging; real time clock- RTC, Type of meter: network parameters, Accuracy class: 0.2S, Manufacturer series: ND25, Measurement: AC current; active power; AC voltage; apparent power; energy; frequency; harmonics; phase angle θ; phase sequence; power factor; reactive power; THD; time, Kind of meter: digital; mounting, Dimensions (W x H x D): 96x96x57mm, Kind of measurement: indirect with 1A current transformer; indirect with 5A current transformer, Mounting: for DIN rail mounting (optional); on panel, Output: pulse output x2, Anzahl je Verpackung: 1 Stücke.
