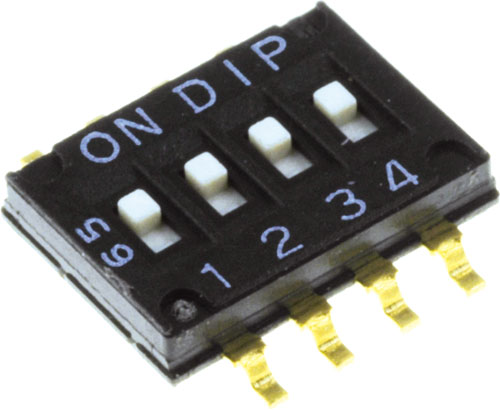

NHDS04
Produktcode: 86146
zu Favoriten hinzufügen
Lieblingsprodukt
Hersteller:
Gruppe: Schalter Typ Dip-Switch
Abmessungen: 6,38x4,5x1,4 mm
Beschreibung: ON-OFF,Raster:1,27mm 0,1/50VDC
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote NHDS04 nach Preis ab 1.3 EUR bis 2.26 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DHN-04F-T-V | CANAL ELECTRONIC |
 Category: Dip-SwitchesDescription: Switch: DIP-SWITCH; Poles number: 4; ON-OFF; 0.1A/50VDC; Pos: 2; SMT Type of switch: DIP-SWITCH Poles number: 4 Switching method: ON-OFF DC contacts rating @R: 0.1A / 50V DC Number of positions: 2 Stable positions number: 2 Mounting: SMT Operating temperature: -20...85°C Min. insulation resistance: 0.1GΩ Max. contact resistance:: 50mΩ Body dimensions: 6.38x4.5x1.4mm Mechanical durability: 1000 cycles Contact material: copper Row pitch: 6.15mm Actuator material: thermoplastic material PPA Contact plating: gold-plated Terminal pitch: 1.27mm Flammability rating: UL94V-0 Switches features: flat actuator Overall length: 6.38mm Body material: thermoplastic |
auf Bestellung 1020 Stücke: Lieferzeit 14-21 Tag (e) |
|
| DHN-04F-T-V |
|
Hersteller: CANAL ELECTRONIC
Category: Dip-Switches
Description: Switch: DIP-SWITCH; Poles number: 4; ON-OFF; 0.1A/50VDC; Pos: 2; SMT
Type of switch: DIP-SWITCH
Poles number: 4
Switching method: ON-OFF
DC contacts rating @R: 0.1A / 50V DC
Number of positions: 2
Stable positions number: 2
Mounting: SMT
Operating temperature: -20...85°C
Min. insulation resistance: 0.1GΩ
Max. contact resistance:: 50mΩ
Body dimensions: 6.38x4.5x1.4mm
Mechanical durability: 1000 cycles
Contact material: copper
Row pitch: 6.15mm
Actuator material: thermoplastic material PPA
Contact plating: gold-plated
Terminal pitch: 1.27mm
Flammability rating: UL94V-0
Switches features: flat actuator
Overall length: 6.38mm
Body material: thermoplastic
Category: Dip-Switches
Description: Switch: DIP-SWITCH; Poles number: 4; ON-OFF; 0.1A/50VDC; Pos: 2; SMT
Type of switch: DIP-SWITCH
Poles number: 4
Switching method: ON-OFF
DC contacts rating @R: 0.1A / 50V DC
Number of positions: 2
Stable positions number: 2
Mounting: SMT
Operating temperature: -20...85°C
Min. insulation resistance: 0.1GΩ
Max. contact resistance:: 50mΩ
Body dimensions: 6.38x4.5x1.4mm
Mechanical durability: 1000 cycles
Contact material: copper
Row pitch: 6.15mm
Actuator material: thermoplastic material PPA
Contact plating: gold-plated
Terminal pitch: 1.27mm
Flammability rating: UL94V-0
Switches features: flat actuator
Overall length: 6.38mm
Body material: thermoplastic
auf Bestellung 1020 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 38+ | 2.26 EUR |
| 41+ | 2.07 EUR |
| 51+ | 1.69 EUR |
| 75+ | 1.5 EUR |
| 450+ | 1.3 EUR |
