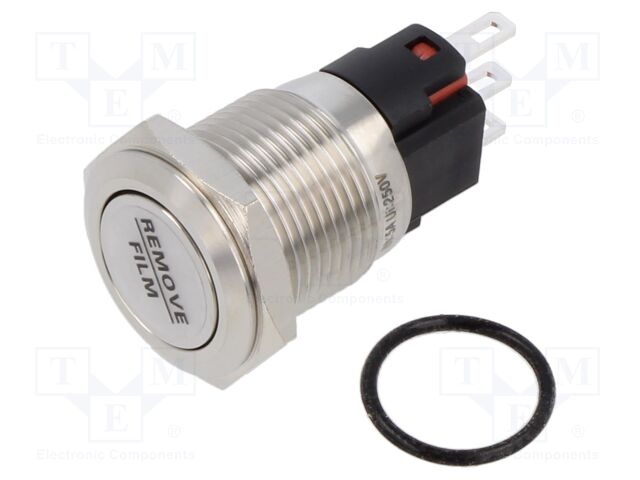

ONPOW6116F-11/S

ONPOW6116F-11/S

pVersion=0046&contRep=ZT&docId=005056AB281E1EDDA69665F163F1C0D3&compId=ONPOW6116F.pdf?ci_sign=637e479cfbfda574b5a4a17fda9e520aed9fc48d pVersion=0046&contRep=ZT&docId=005056AB281E1EDF98A4F0971C18E0D6&compId=ONPOW61.pdf?ci_sign=2a1cdc9c762769cdcb93b900d7b6d30d1950f7a4 Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 1A/220VAC; IP65; ON-(ON)
Switching method: ON-(ON)
Contact material: silver alloy
Leads: connectors
IP rating: IP65
Illumination: none
Type of switch: vandal resistant
Button shape: round
Contacts configuration: SPDT
Body material: stainless steel
Button material: stainless steel
Operating temperature: -25...55°C
Leads dimensions: 2.8x0.5mm
Mounting hole diameter: Ø16mm
Max. contact resistance:: 50mΩ
AC contacts rating @R: 1A / 220V AC
Stable positions number: 1
Number of positions: 2
Operating Force: 2.5N
Mechanical durability: 1000000 cycles
Electrical life: 50000 cycles
Min. insulation resistance: 0.1GΩ
Related items: M12-16F; M36-A-11
Anzahl je Verpackung: 1 Stücke
auf Bestellung 10 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
10+7.15 EUR
11+6.51 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details ONPOW6116F-11/S ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 1A/220VAC; IP65; ON-(ON), Switching method: ON-(ON), Contact material: silver alloy, Leads: connectors, IP rating: IP65, Illumination: none, Type of switch: vandal resistant, Button shape: round, Contacts configuration: SPDT, Body material: stainless steel, Button material: stainless steel, Operating temperature: -25...55°C, Leads dimensions: 2.8x0.5mm, Mounting hole diameter: Ø16mm, Max. contact resistance:: 50mΩ, AC contacts rating @R: 1A / 220V AC, Stable positions number: 1, Number of positions: 2, Operating Force: 2.5N, Mechanical durability: 1000000 cycles, Electrical life: 50000 cycles, Min. insulation resistance: 0.1GΩ, Related items: M12-16F; M36-A-11, Anzahl je Verpackung: 1 Stücke.
