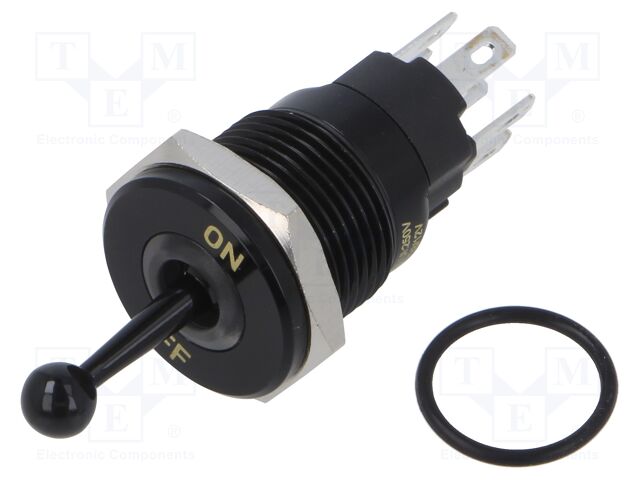

ONPOW7116A1-11/2/41RGB/12V/A
Hersteller: ONPOW
Category: Toggle Switches
Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 5A/250VAC; -40÷85°C; IP67; 12VDC
Contacts configuration: SPDT
AC contacts rating @R: 5A / 250V AC
Mounting: on panel
Leads: connectors; for soldering
Operating temperature: -40...85°C
Mounting hole dimensions: Ø16mm
Type of switch: toggle
Illumination voltage: 12V DC
Mechanical durability: 500000 cycles
Body colour: black
Lever length: 14.6mm
Stable positions number: 2
Body material: aluminium anodised
Backlight colour: red/green/blue; RGB
Kind of toggle: with round head
Dimensions: Ø18x46.4mm
Switching method: ON-ON
Min. insulation resistance: 0.1GΩ
Max. contact resistance:: 50mΩ
Leads dimensions: 2.8x0.5mm
Illumination: LED
Number of positions: 2
Panel thickness: max. 8mm
IP rating: IP67
Indexed positions: 24°
