Produkte > ONPOW > ONPOW7116A1-11/2/41RGB/12V/S

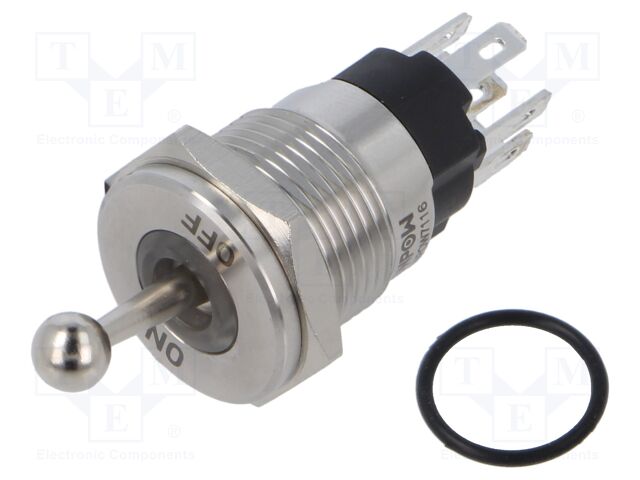

ONPOW7116A1-11/2/41RGB/12V/S

ONPOW7116A1-11/2/41RGB/12V/S

pVersion=0046&contRep=ZT&docId=005056AB281E1FD085BF4E6AF3E820DC&compId=ONPOW71%20series.pdf?ci_sign=273fadf53616ae5a98c4e3c40d41a11a2c6db726 Hersteller: ONPOW
Category: Toggle Switches
Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 5A/250VAC; -40÷85°C; IP67; 12VDC
Operating temperature: -40...85°C
Mounting: on panel
IP rating: IP67
Illumination: LED
Switching method: ON-ON
Backlight colour: red/green/blue; RGB
Contacts configuration: SPDT
Type of switch: toggle
Kind of toggle: with round head
Leads dimensions: 2.8x0.5mm
Panel thickness: max. 8mm
Lever length: 14.6mm
Mounting hole diameter: Ø16mm
Dimensions: Ø18x46.4mm
Max. contact resistance:: 50mΩ
Number of positions: 2
Stable positions number: 2
AC contacts rating @R: 5A / 250V AC
Illumination voltage: 12V DC
Indexed positions: 24°
Mechanical durability: 500000 cycles
Min. insulation resistance: 0.1GΩ
Body colour: silver
Body material: stainless steel
Leads: connectors; for soldering
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
4+17.88 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details ONPOW7116A1-11/2/41RGB/12V/S ONPOW

Category: Toggle Switches, Description: Switch: toggle; Pos: 2; SPDT; ON-ON; 5A/250VAC; -40÷85°C; IP67; 12VDC, Operating temperature: -40...85°C, Mounting: on panel, IP rating: IP67, Illumination: LED, Switching method: ON-ON, Backlight colour: red/green/blue; RGB, Contacts configuration: SPDT, Type of switch: toggle, Kind of toggle: with round head, Leads dimensions: 2.8x0.5mm, Panel thickness: max. 8mm, Lever length: 14.6mm, Mounting hole diameter: Ø16mm, Dimensions: Ø18x46.4mm, Max. contact resistance:: 50mΩ, Number of positions: 2, Stable positions number: 2, AC contacts rating @R: 5A / 250V AC, Illumination voltage: 12V DC, Indexed positions: 24°, Mechanical durability: 500000 cycles, Min. insulation resistance: 0.1GΩ, Body colour: silver, Body material: stainless steel, Leads: connectors; for soldering.
